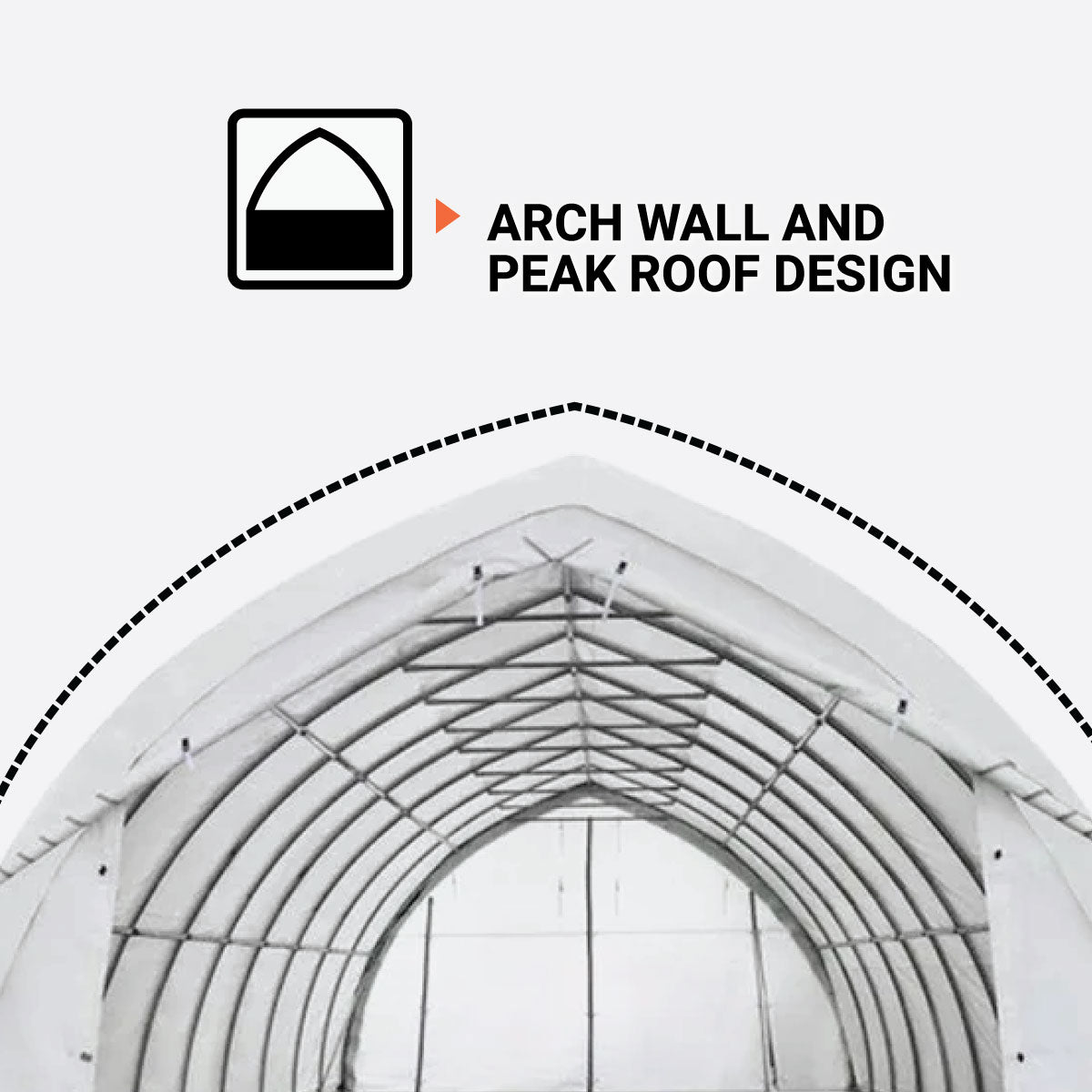

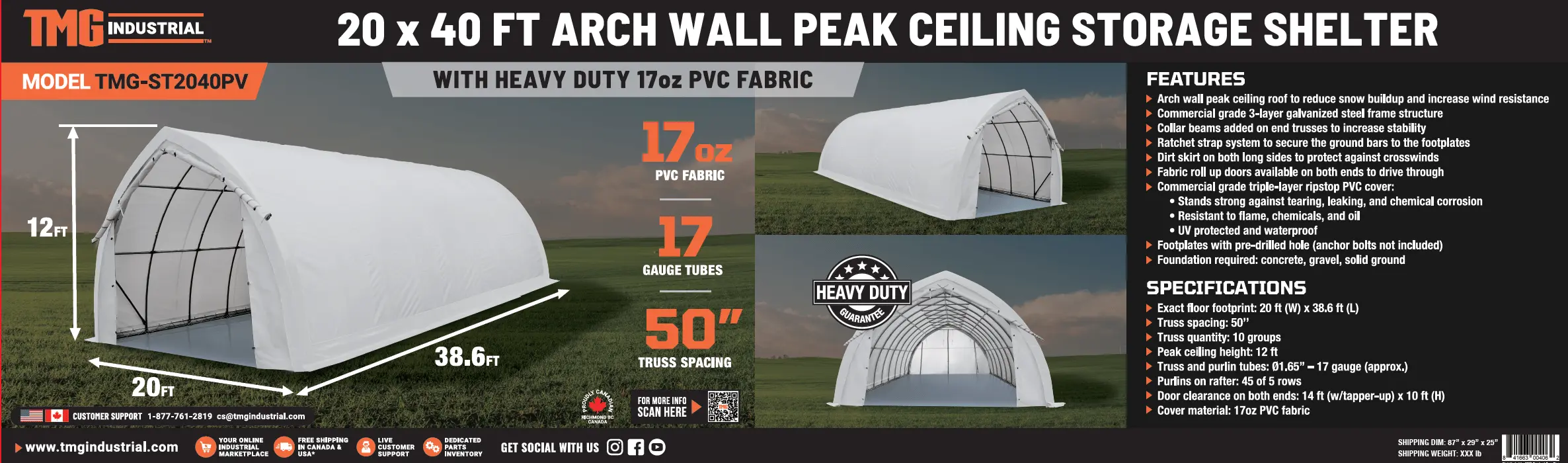

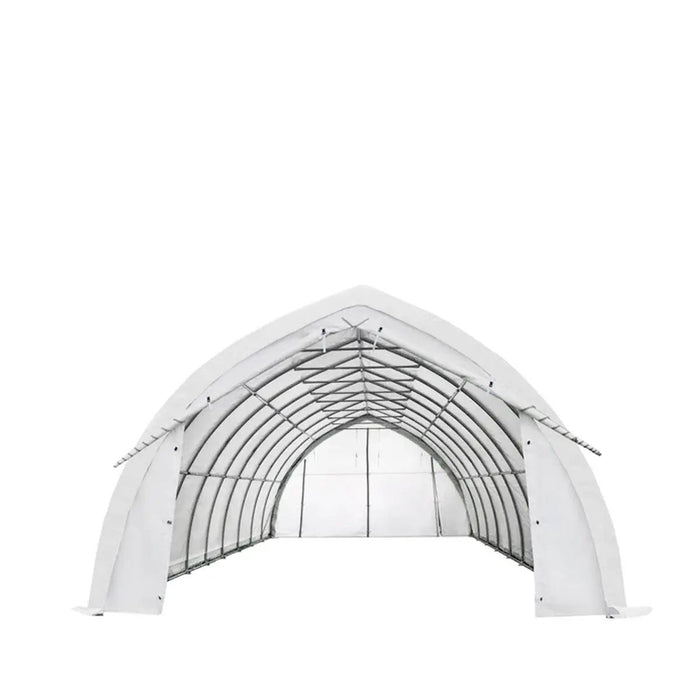

• Structure Type: Arch Wall Peak Ceiling

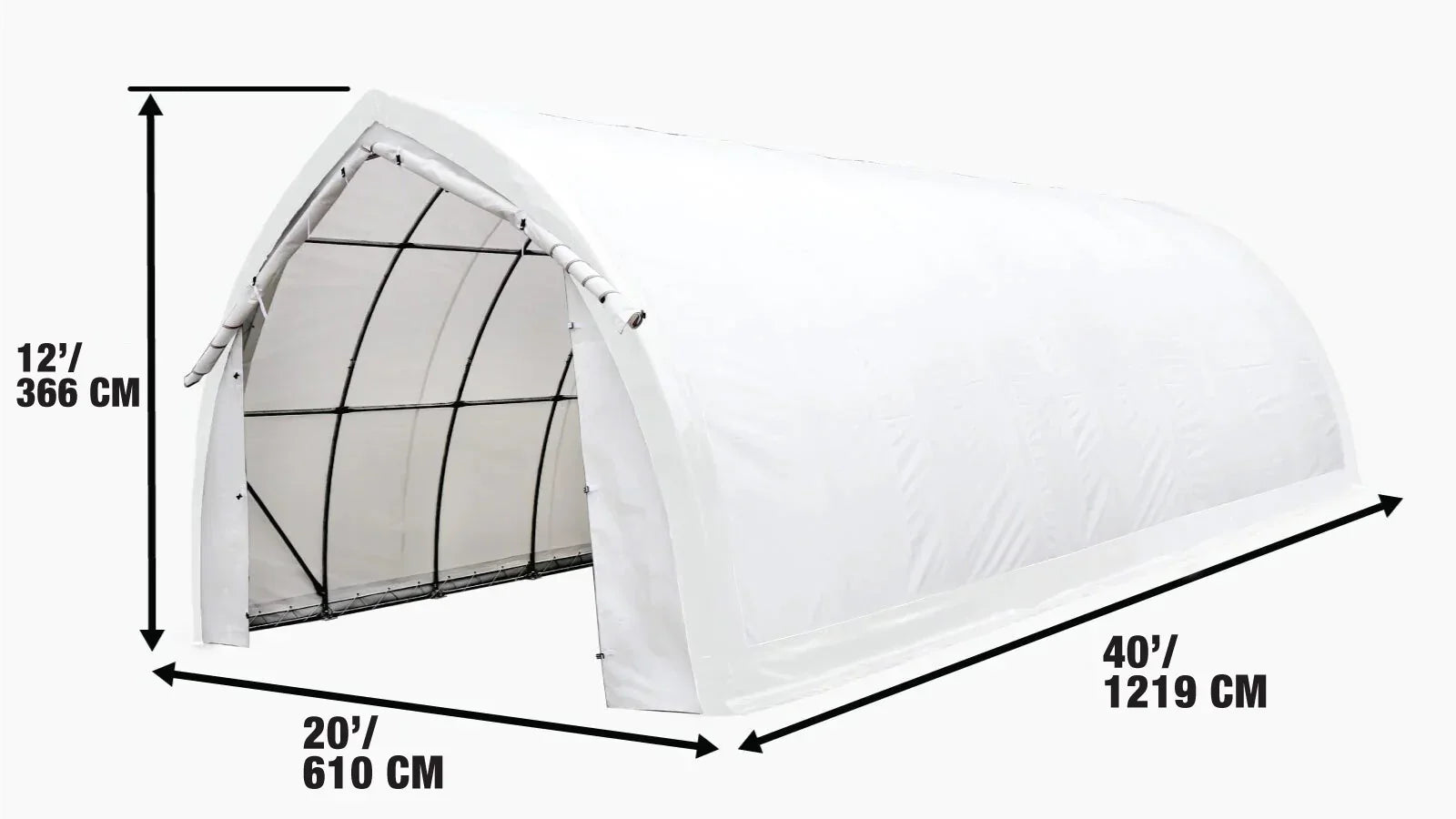

• Overall Dimensions: 6.1 × 11.8 m (20′ × 39′)
• Footprint: 72 m² (800 sq ft)

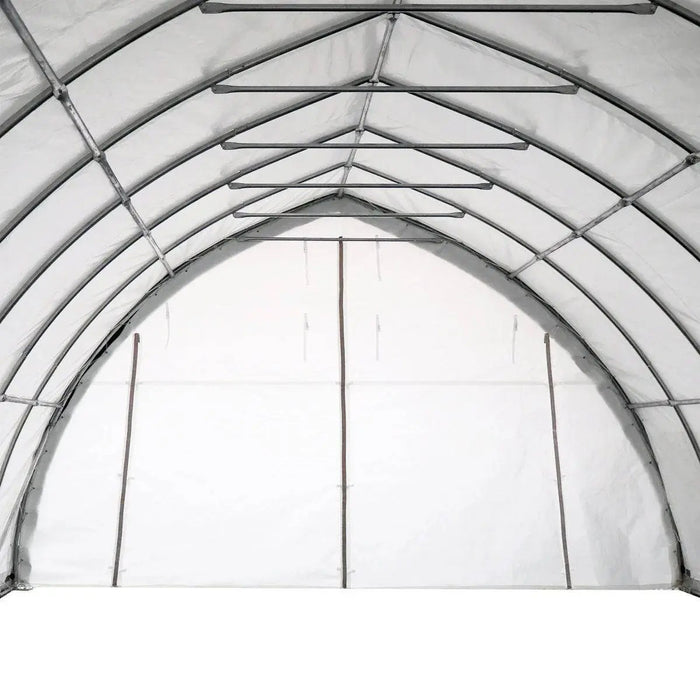

• Truss Tubes: φ42 mm × 1.3 mm (1.65” – 17 GA)

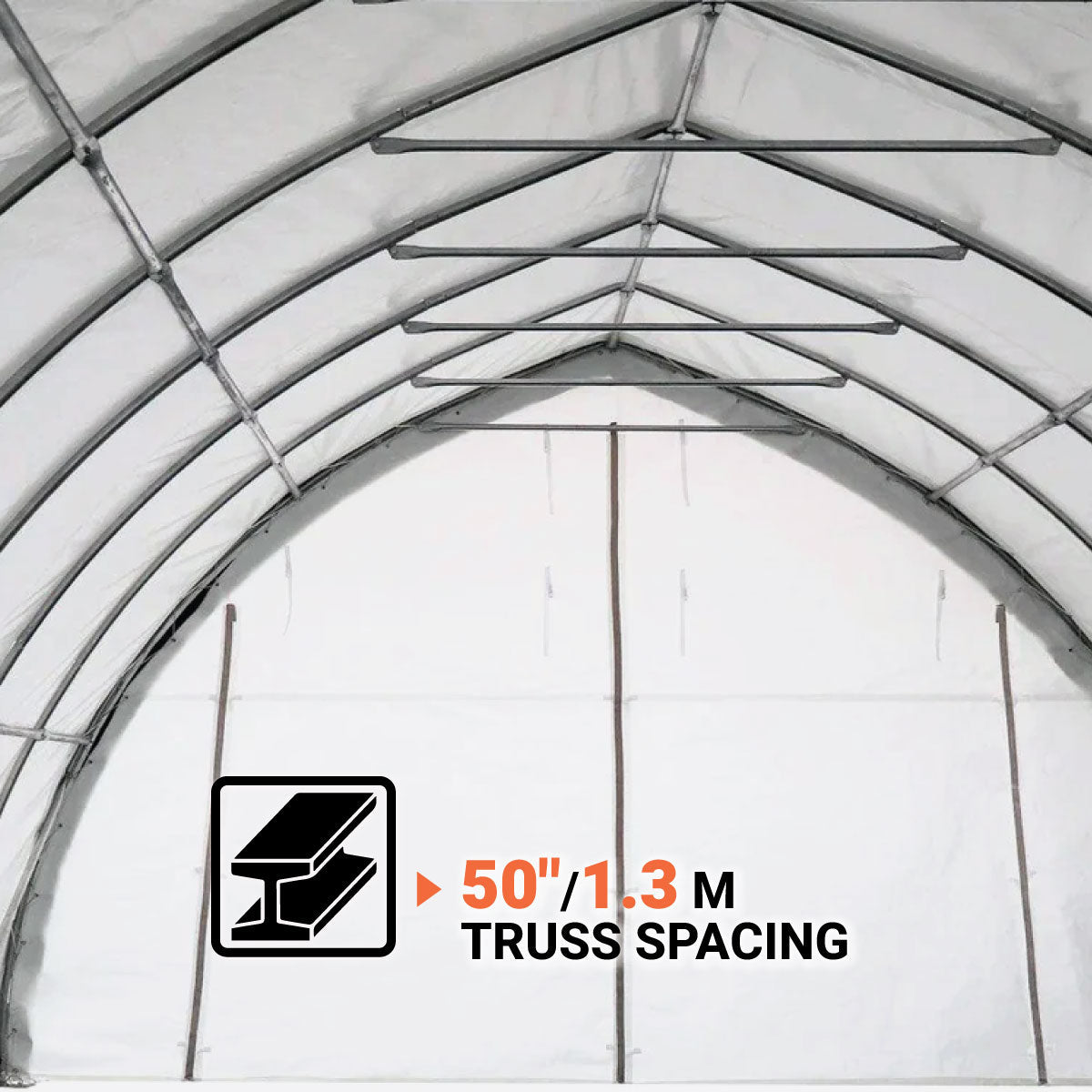

• Truss Spacing: 1.3 m (50")
• Number of Truss Groups: 10
• Purlin Tubes: φ42 mm × 1.3 mm (1.65” – 17 GA)
• Purlin Spacing: 1.7 m
• Number of Purlin Tubes: 45 (9 × 5)
• Peak Ceiling Height: 3.66 m (12')
• Sidewall Height: N/A
• Cover Material: 450 gsm PVC
• Door Dimensions (W × H): 4.3 × 3.2 m (14' × 10')
• Number of Doors: 2
• Foundation Size Required: 6.3 × 12 m
• Footplate Dimensions: 250 × 150 mm, 150 × 150 mm
• Net Weight: 355 kg (782 lb)

Your order will ship from a primary warehouse in Australia. We process and dispatch within 2–3 business days, and most deliveries arrive within 10–15 business days.

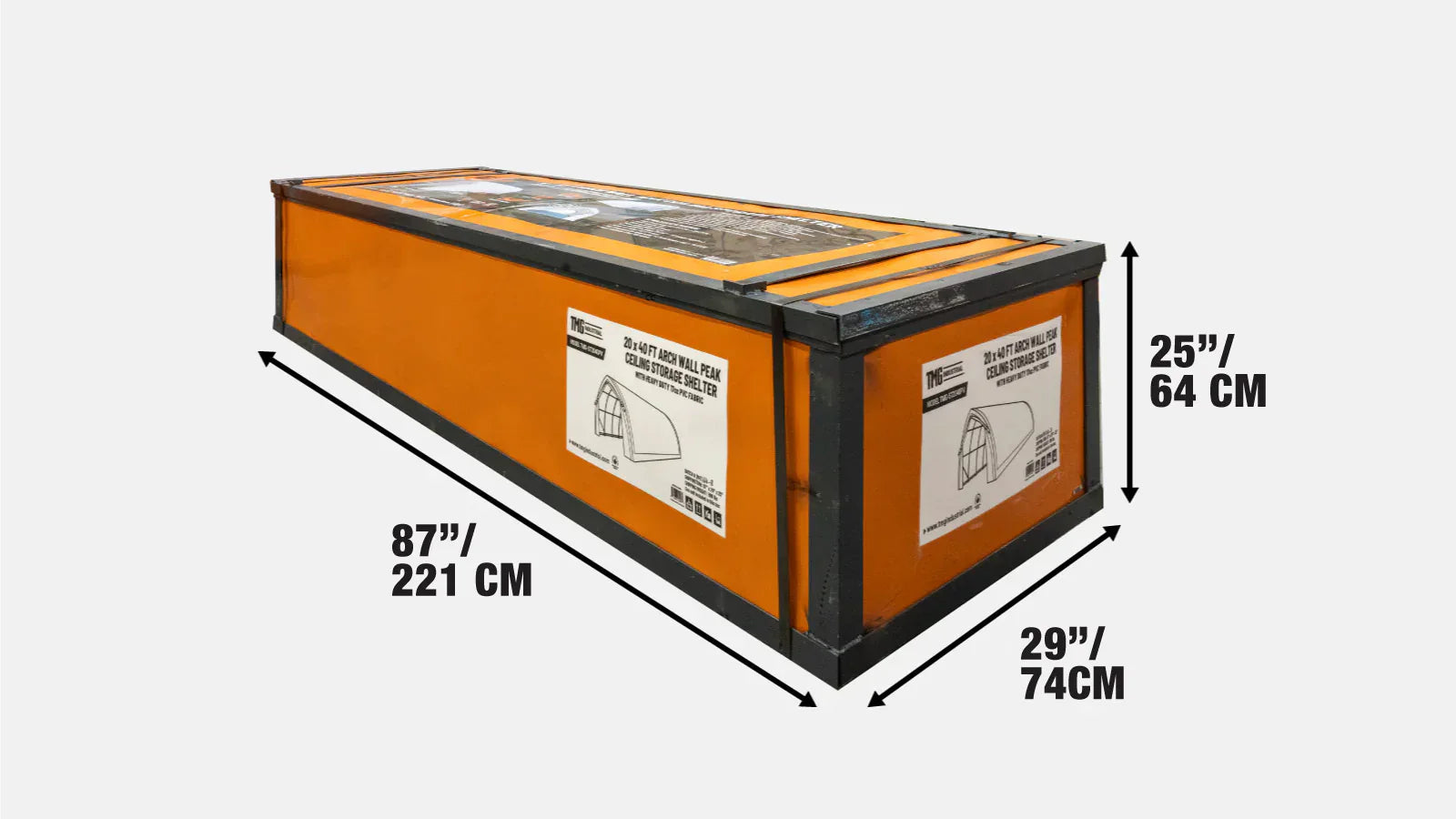

• Packaging: Packed in a metal crate shipping box
• Shipping dimensions: 221 x 74 x 64 cm (L x W x H)
• Shipping weight: 489 kg

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

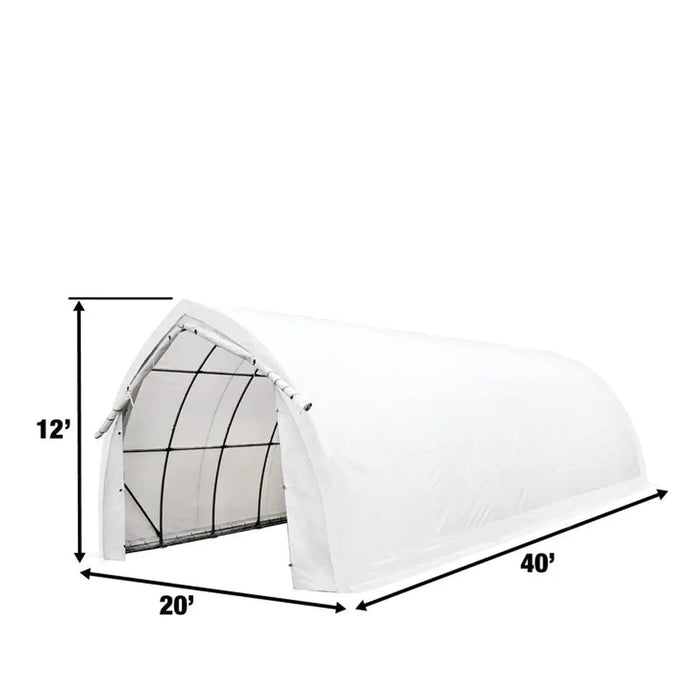

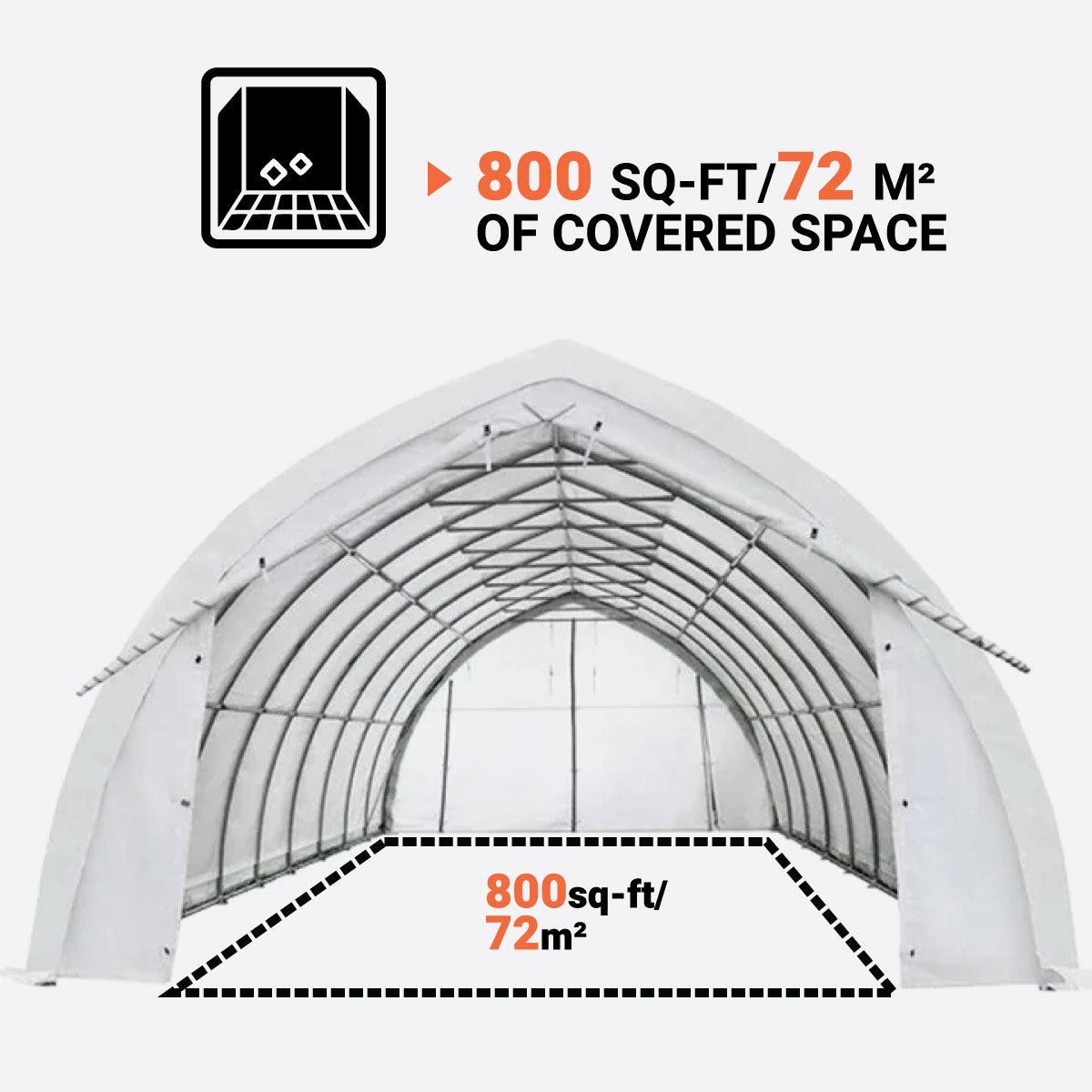

• Q: What are the dimensions and coverage area of the TMG-ST2041PV?
  A: The TMG-ST2041PV measures approximately 6 metres (20 feet) in width and 12 metres (40 feet) in length, providing a covered area of about 72 square metres (800 square feet).

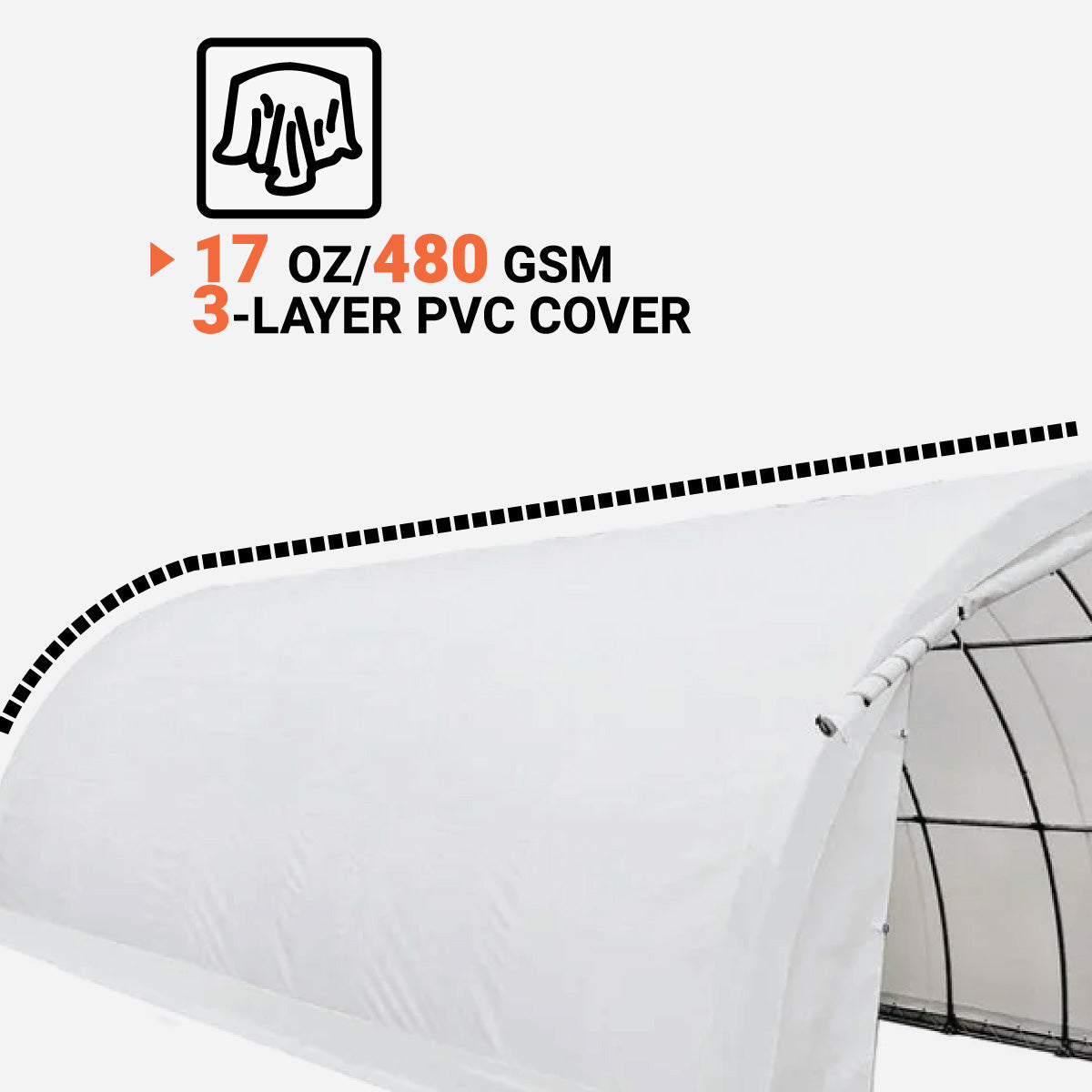

• Q: What materials are used in the construction of the shelter?

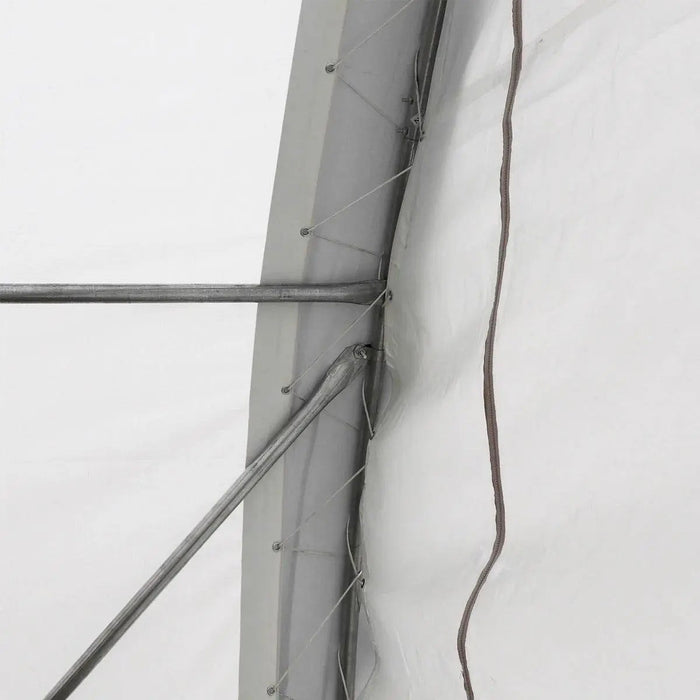

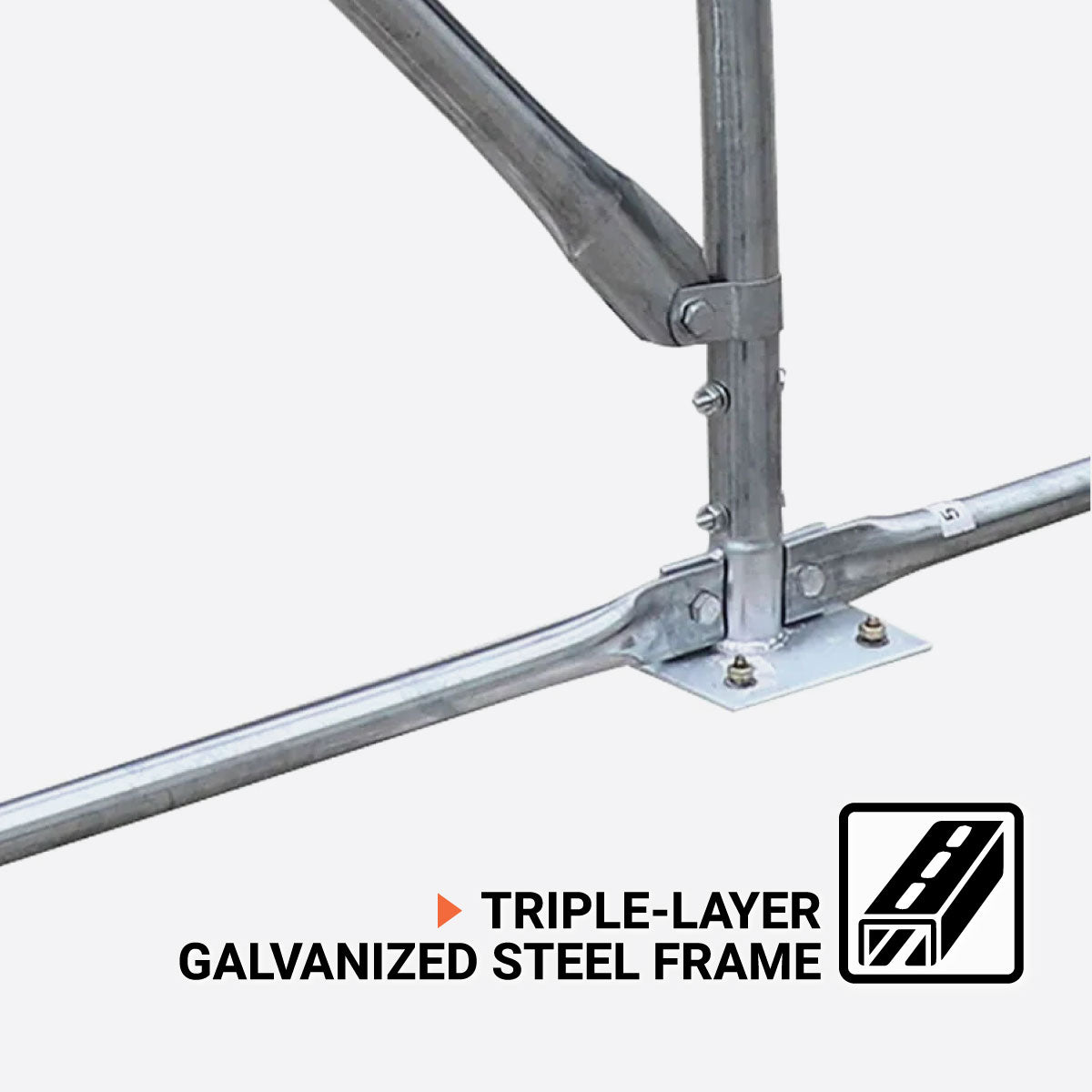

  A: The shelter features a heavy-duty, triple-layered 450 gsm fabric cover that is UV protected, waterproof, and flame retardant. The frame is constructed from commercial-grade galvanized steel, ensuring structural integrity and corrosion resistance.
• Q: What is the height of the shelter?
  A: The peak ceiling height is approximately 3.66 metres (12 feet) allowing ample space for various storage needs.

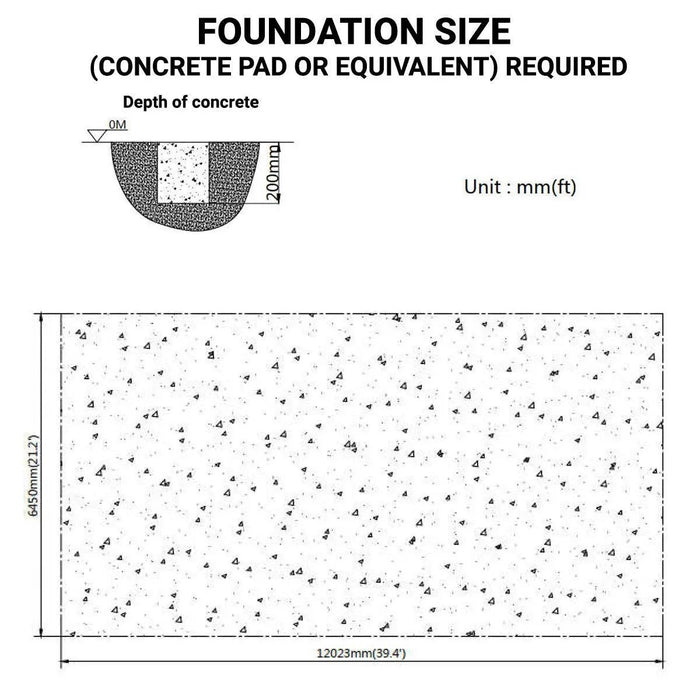

• Q: What foundation is required for installation?
  A: A concrete slab or an equivalent solid foundation is recommended for optimal stability and longevity of the shelter.
• Q: Are there doors on both ends of the shelter?

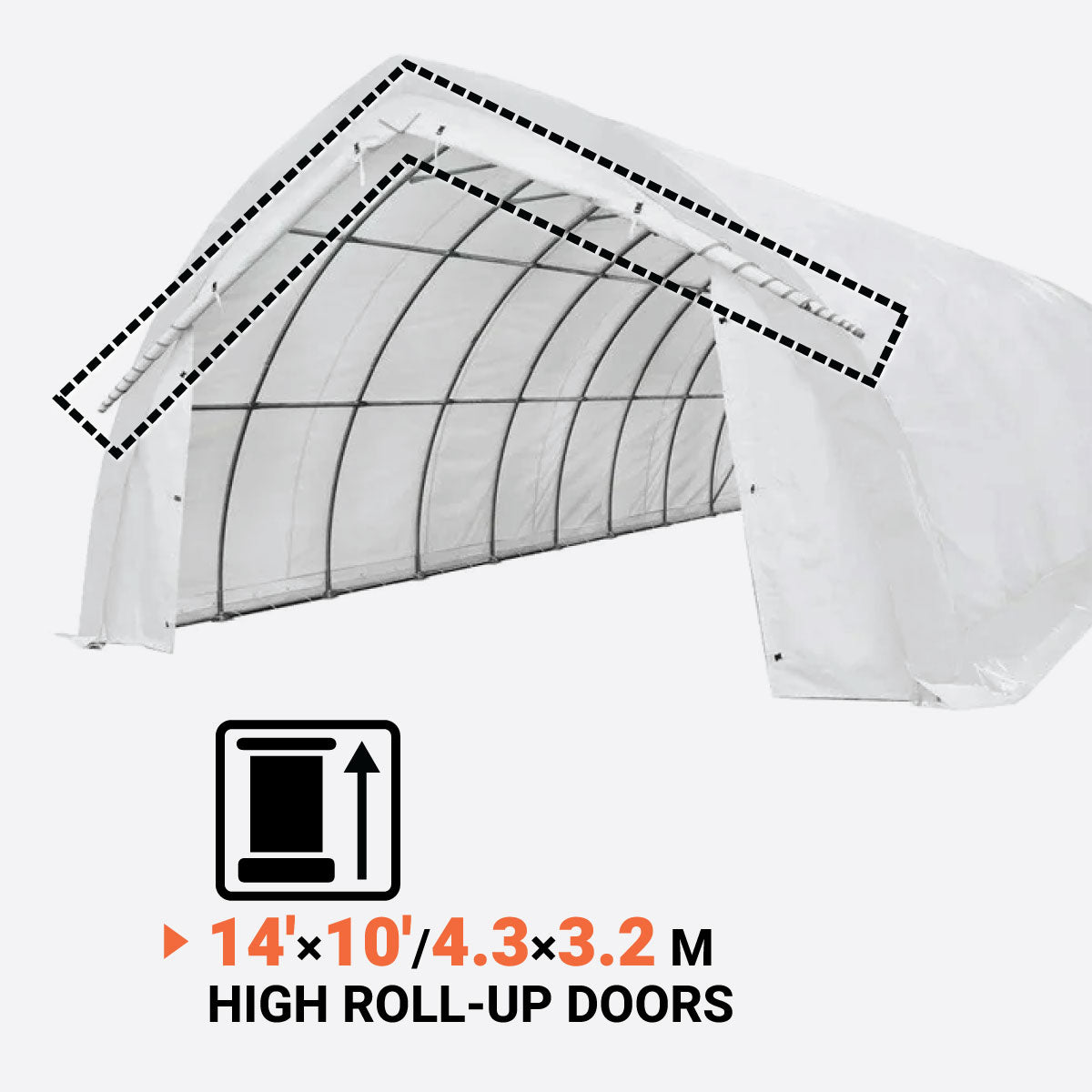

  A: Yes, this shelter includes two roll-up doors, one on each end wall, measuring approximately 4.3 metres (14 feet) in width and 3.2 metres (10 feet) in height, facilitating easy access for vehicles and equipment.
• Q: Is the shelter suitable for Australian weather conditions?
  A: The TMG-ST2041PV is designed to withstand various environmental conditions, including UV exposure, wind or rainfall, making it suitable for use across different Australian climates.

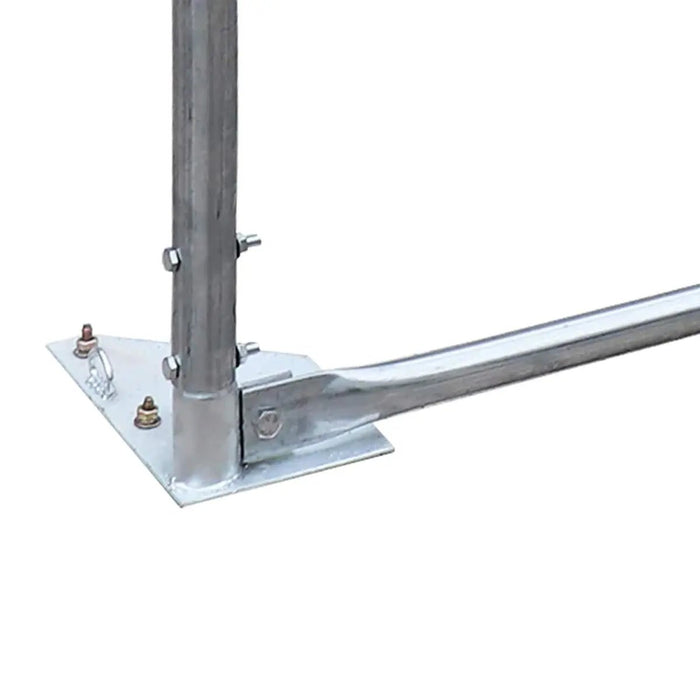

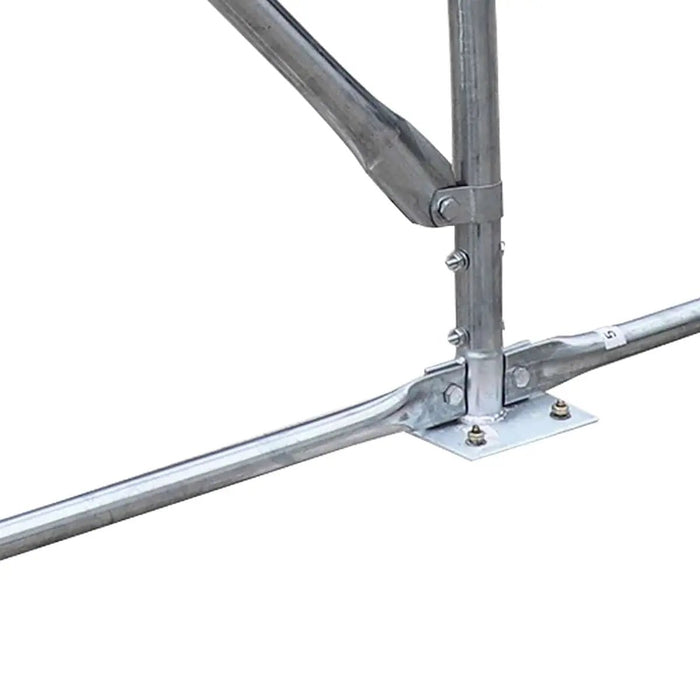

• Q: Are anchor bolts included with the shelter?
  A: Footplates with pre-drilled holes are included for anchoring purposes; however, anchor bolts are not provided and should be sourced separately based on the installation surface.
• Q: Can the shelter be used for agricultural purposes?
  A: Absolutely. The TMG-ST2041PV is versatile and suitable for various applications, including agricultural storage, equipment housing, and workshop space.
• Q: What is the warranty on the TMG-ST2041PV?
  A: It is backed by a 1-year manufacturer warranty.

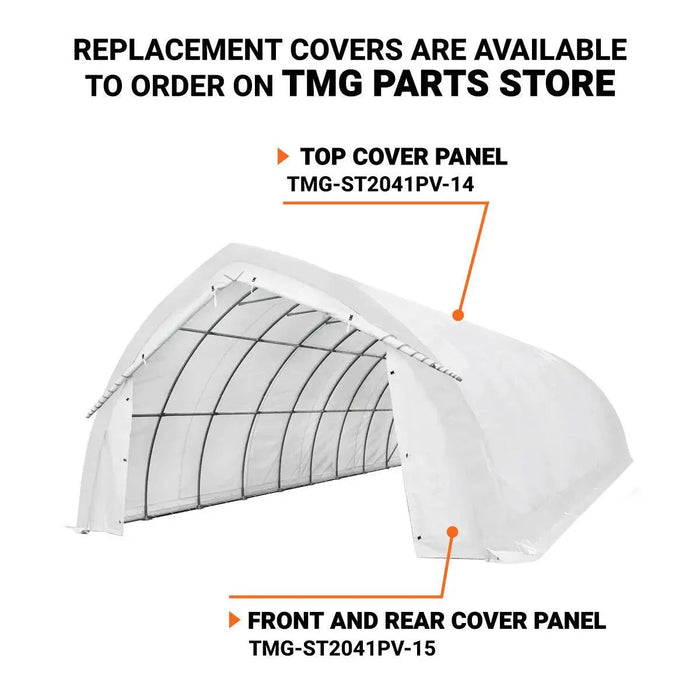

• Q: Are replacement covers available?
  A: Yes, replacement covers are available for order, and can be found in the Parts Store on the TMG Industrial website.
