TMG-ST1535

4.6 x 10.7 m RV/Motorhome Storage Shelter with Heavy-Duty 570 gsm PVC Cover, TMG-ST1535

Product Manual
TMG Industrial 15’ x 35’ RV/Motorhome Storage Shelter, 17 oz PVC Fabric Cover, Front Roll-Up Door, Enclosed Rear Wall, 3-Layer Galvanized Steel Frame, 10’ Straight Sidewalls, TMG-ST1535
Incoming Summer 2026
TMG-ST1535
$4,399.00
$4,399.00 - $4,399.00
$4,399.00
$3,899.00
$3,899.00 - $3,899.00
$3,899.00
$4,399.00 Save $500.00
$3,899.00

Arriving in Summer 2026 Learn More
1-800-870-844
Product Image 1 Product Image 2 Product Image 3

Features icon Features

Feature Image

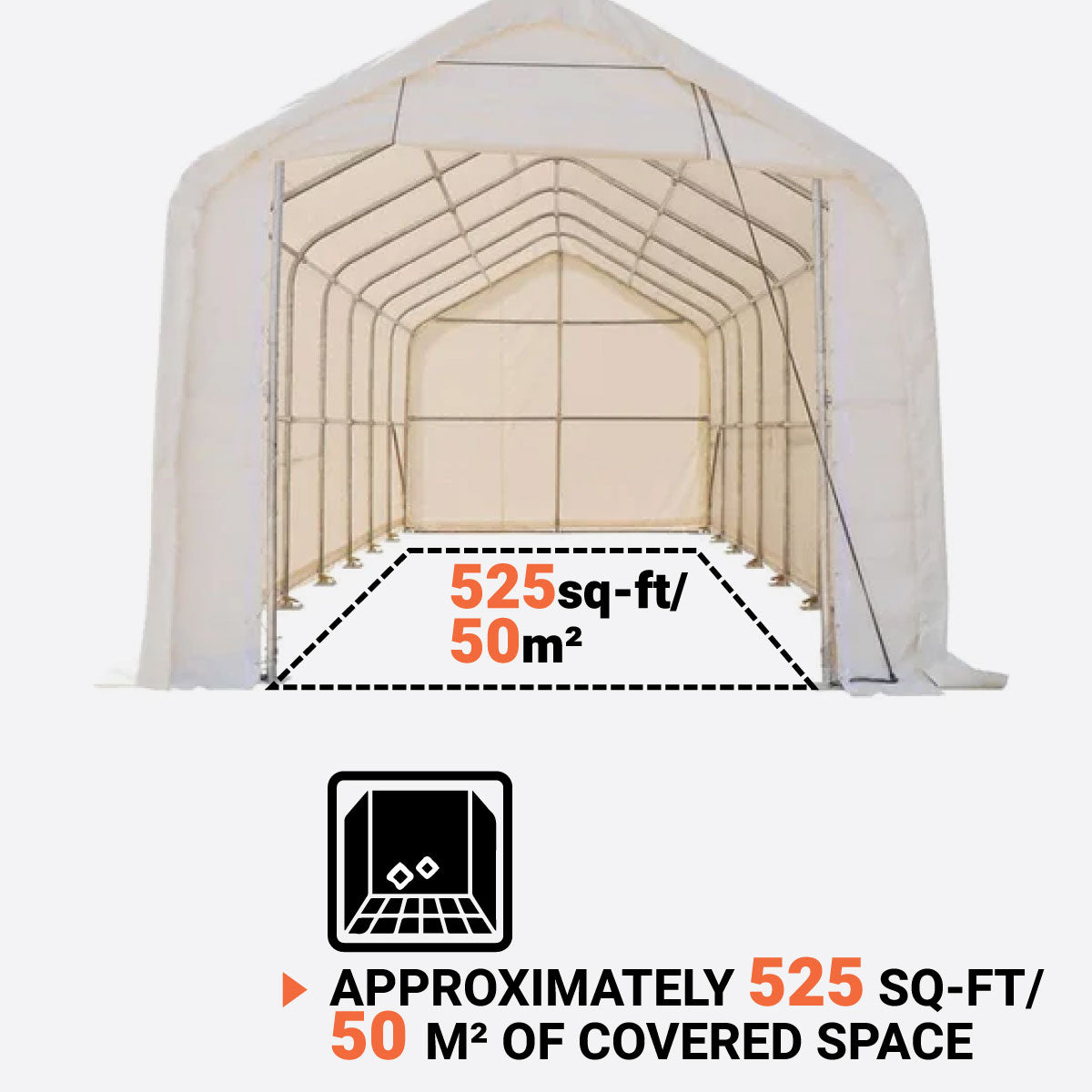

Approximately 525 sq-ft / 50 m² of covered space for RVs, motorhomes, and large equipment
Feature Image

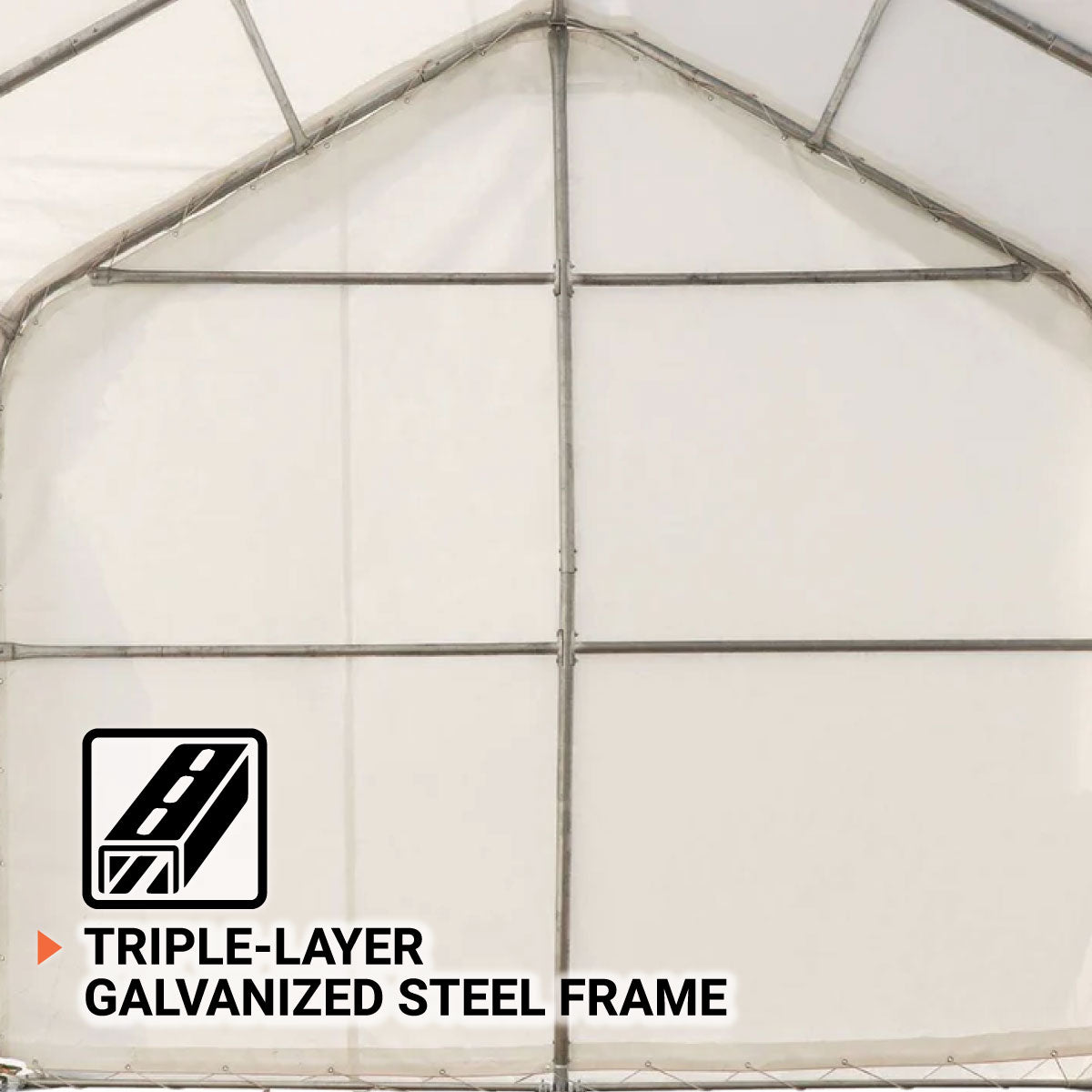

Commercial grade, 3-layer galvanized steel frame resists corrosion and harsh conditions
Feature Image

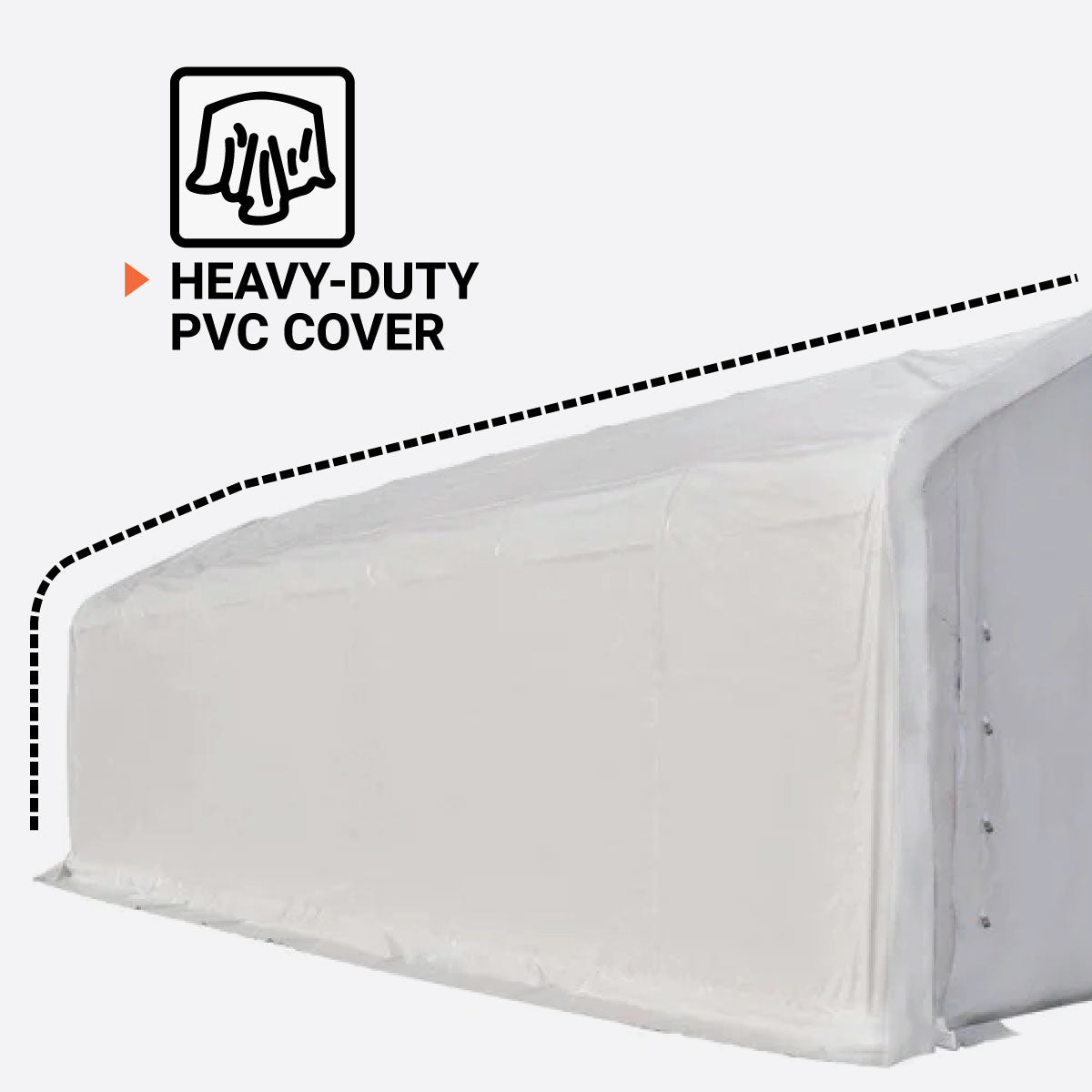

Heavy-duty, triple-layer ripstop PVC cover is UV protected, waterproof, and naturally flame retardant
Feature Image

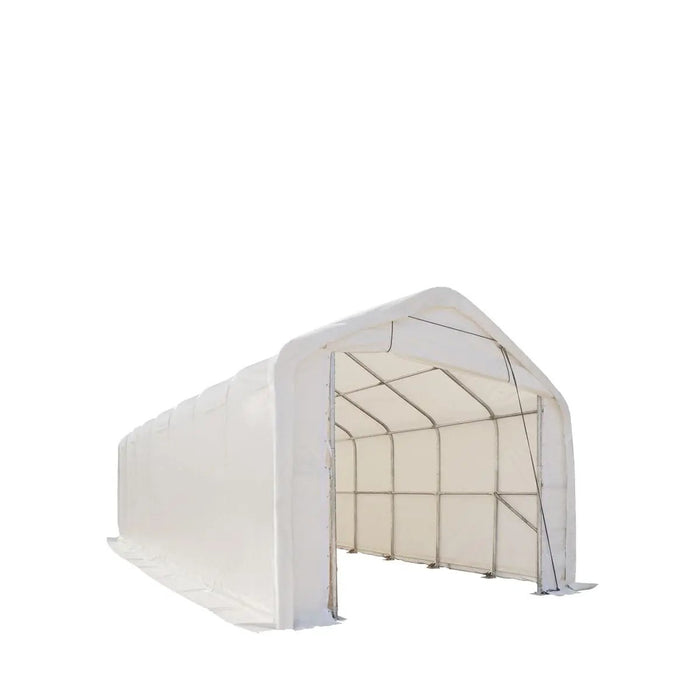

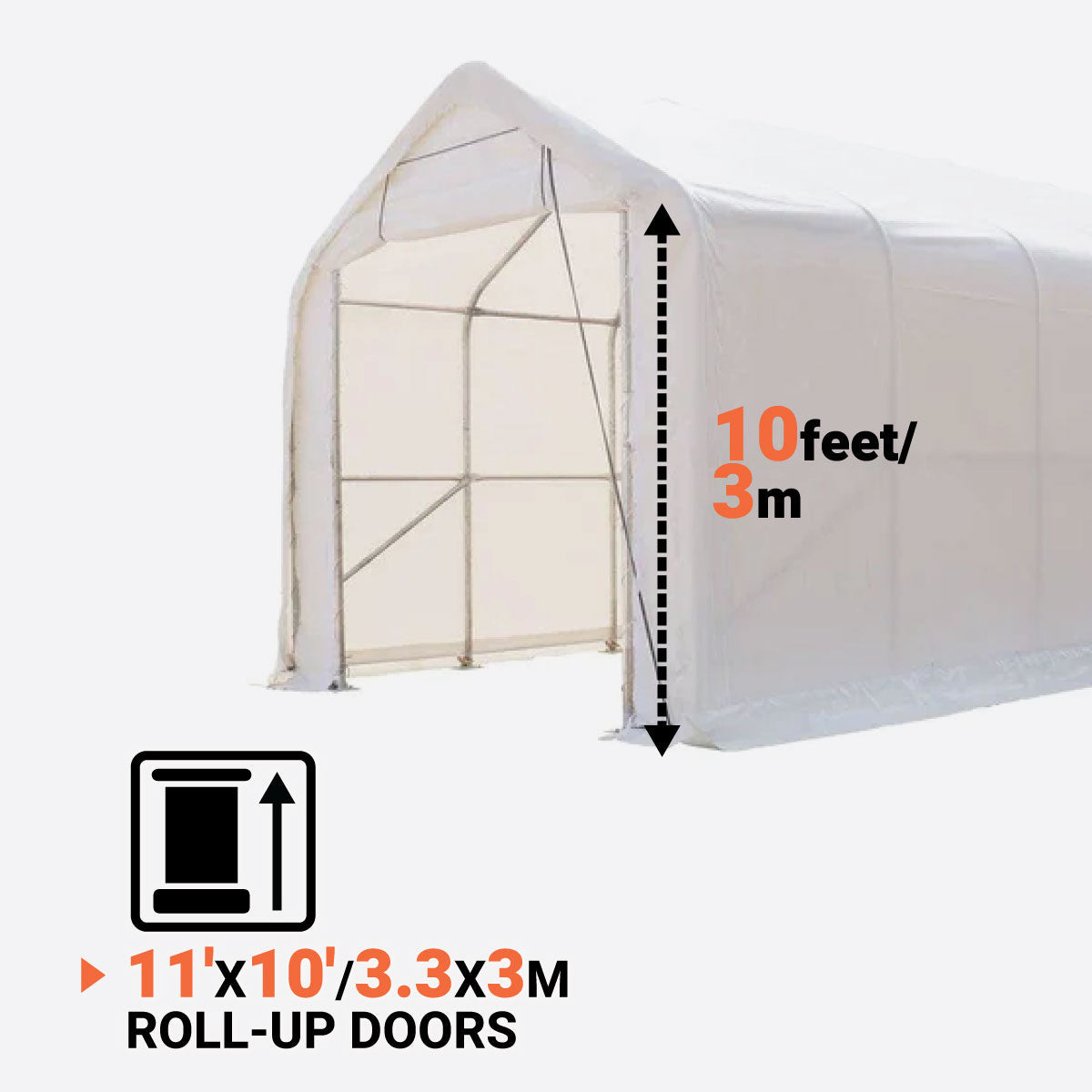

Large 11' wide x 10' tall / 3.3 m wide x 3 m tall roll-up door at the front for easy access
Feature Image

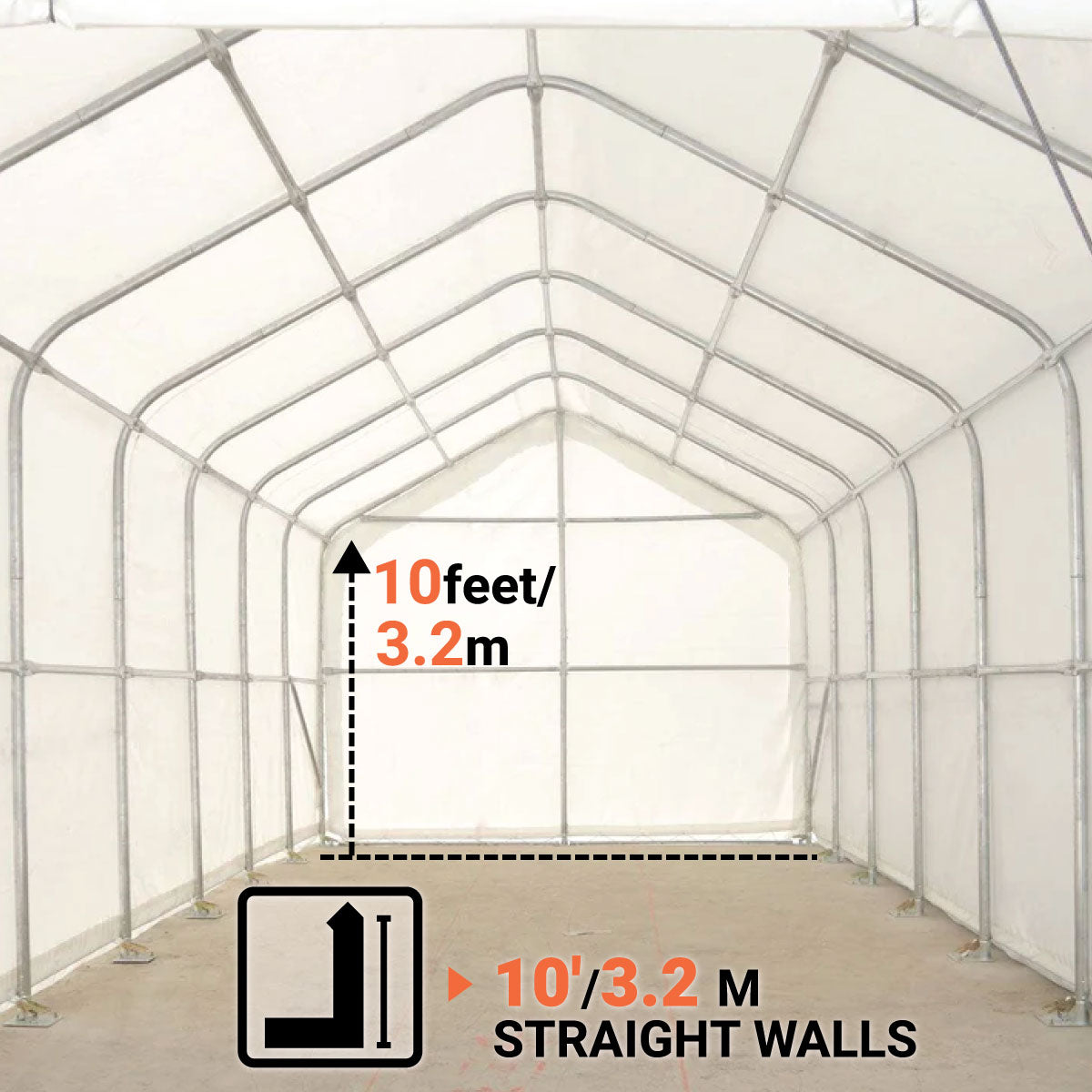

Features 10 ft (3.2m) straight sidewalls for maximum usable interior height
Feature Image

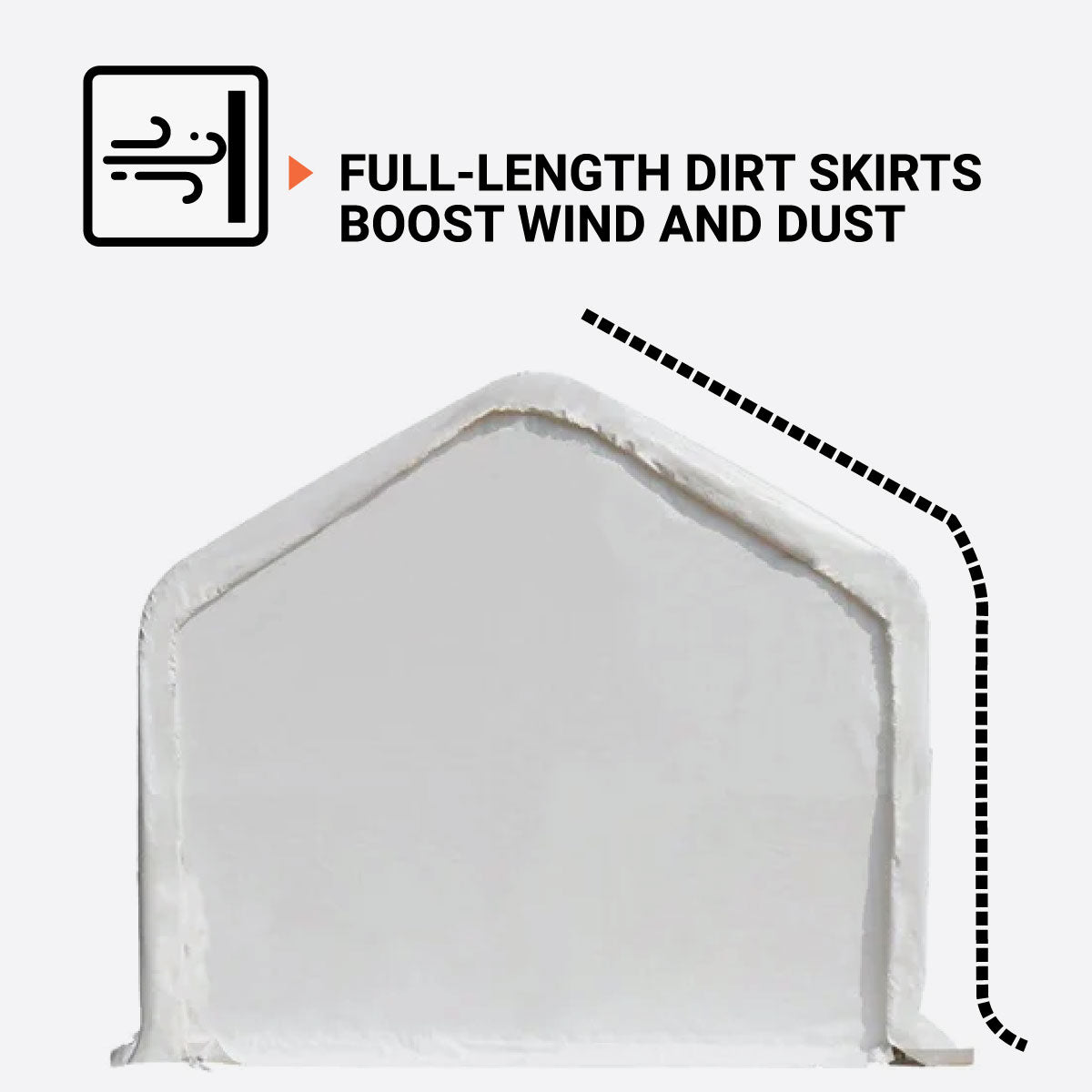

Dirt skirts run along the full length of both sides to enhance wind and dustproofing

Specifications icon Specifications

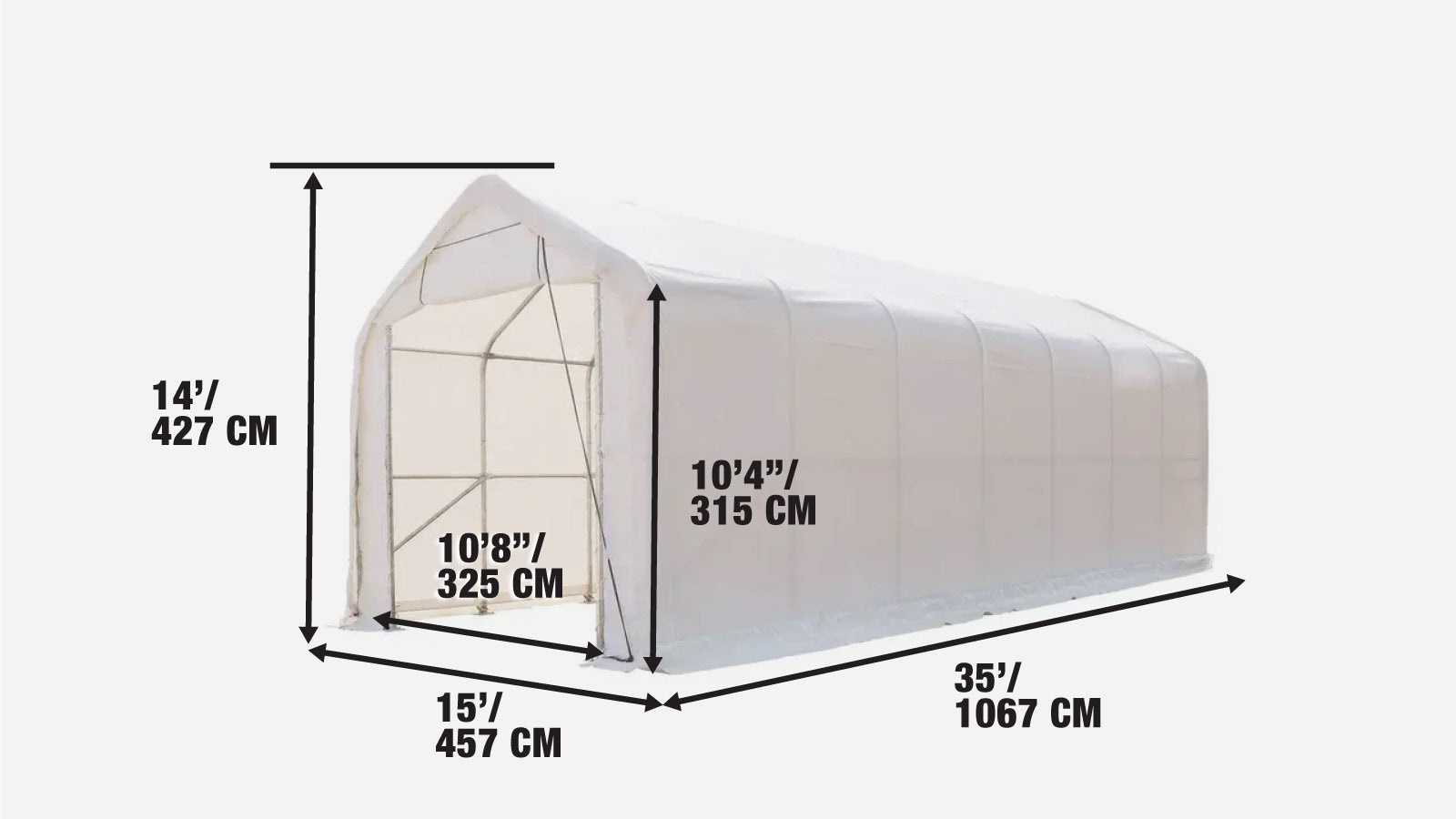

  • Product Type: RV/Motorhome Storage Shelter

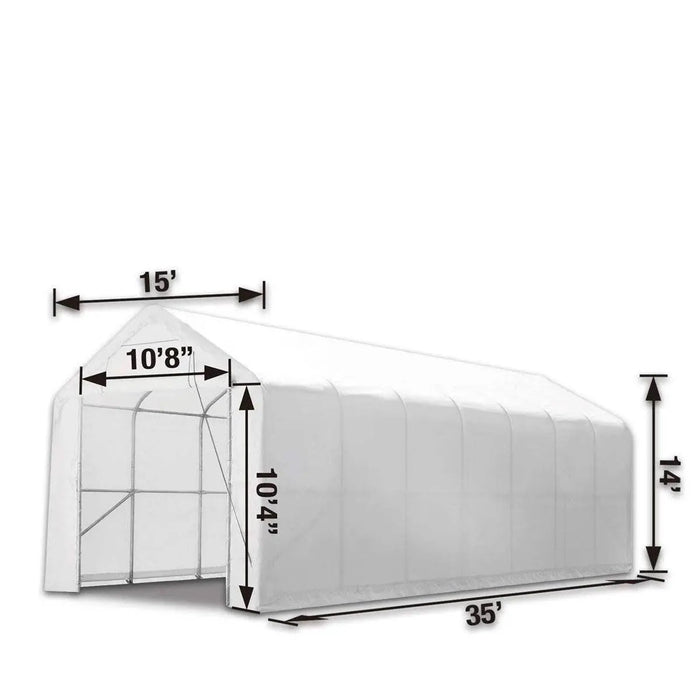

  • Floor Footprint (W × L): 4.6 × 10.7 m
  • Square Footage: 50 m²
  • Foundation Size: 4.9 × 10.9 m
  • Truss Spacing: 1.5 m
  • Number of Truss Frames: 8 groups
  • Peak Ceiling Height: 4.27 m
  • Sidewall Height: 3.15 m
  • Truss Tubes: Ø58 mm – 1.7 mm
  • Purlin Tubes: Ø48 mm – 1.8 mm
  • Cover Material: 17 oz / 570 gsm PVC
  • Door Clearance (W × H): 3.3 × 3 m
  • Shipping Weight: 708 kg
4.6 x 10.7 m RV/Motorhome Storage Shelter with Heavy-Duty 570 gsm PVC Cover, TMG-ST1535-specifications-image

Product Description icon Product Description

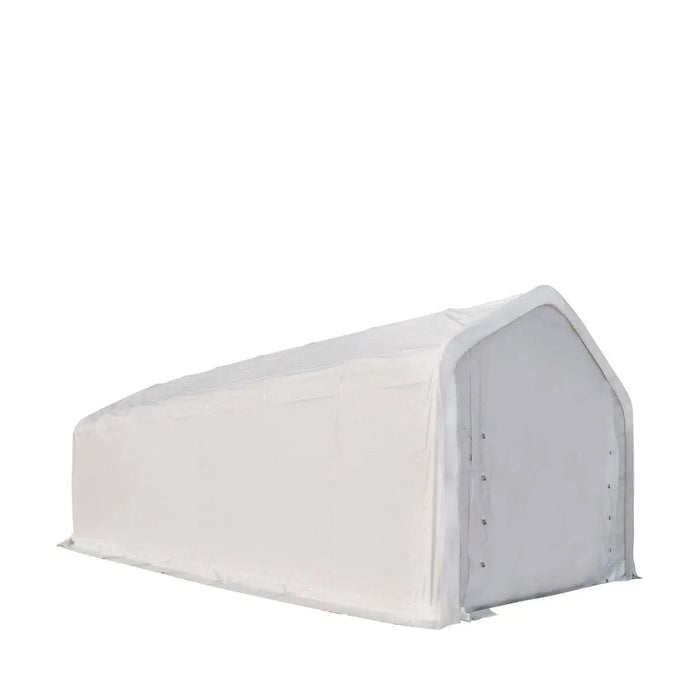

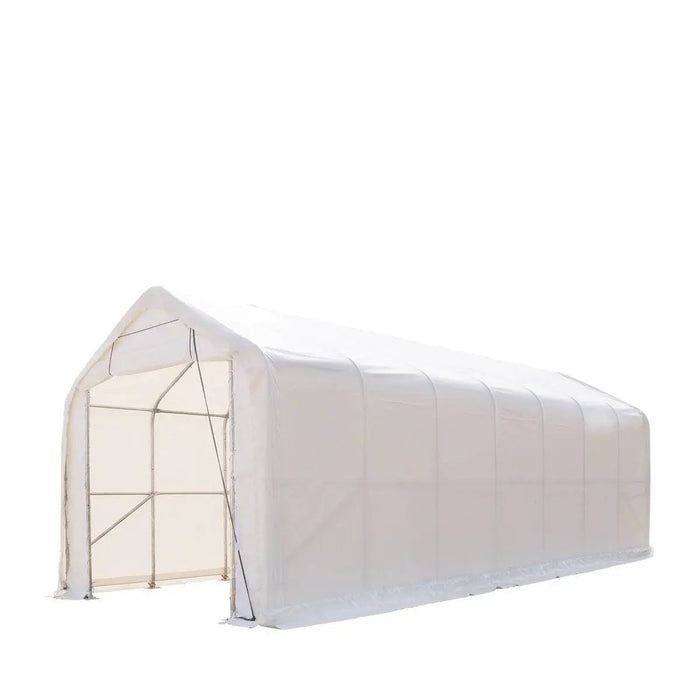

The TMG-ST1535 15’ x 35’ RV/Motorhome Storage Shelter provides an easy to assemble, durable outdoor RV/motorhome storage solution on your farm, acreage, dealership and more. Approximately 525 sq-ft of covered space to house your camper, boat, ATV’s, vehicles and more. This shelter is designed to be installed on any concrete pad or equivalent, so you can set it up wherever is most convenient regardless of how rural, remote or industrial your location is.

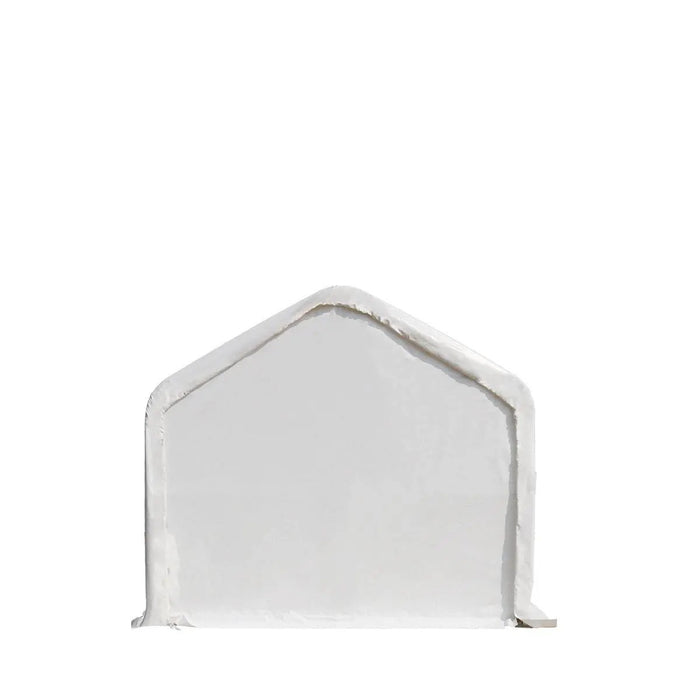

Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing. The first 10’ of each side is a straight wall which amplifies storage space along the edges, and an enclosed rear wall and front fabric roll-up door helps protect your motorhome from being exposed during harsh weather.

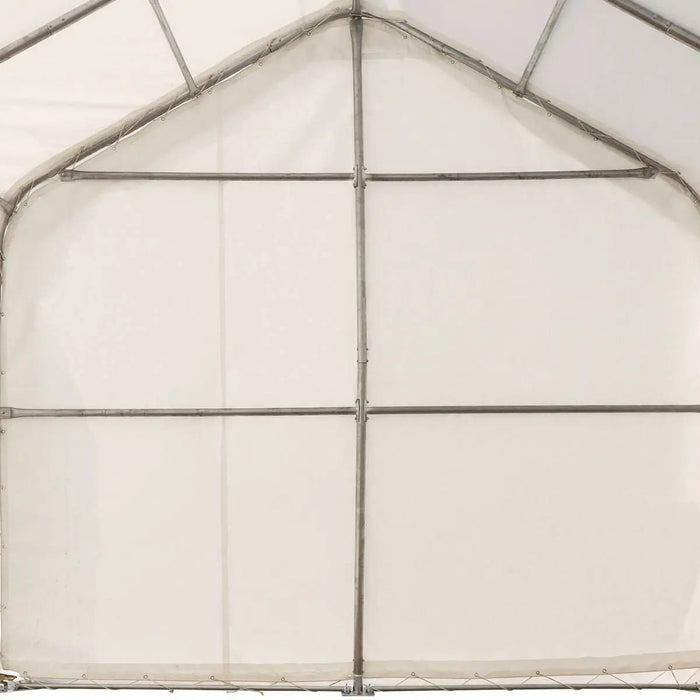

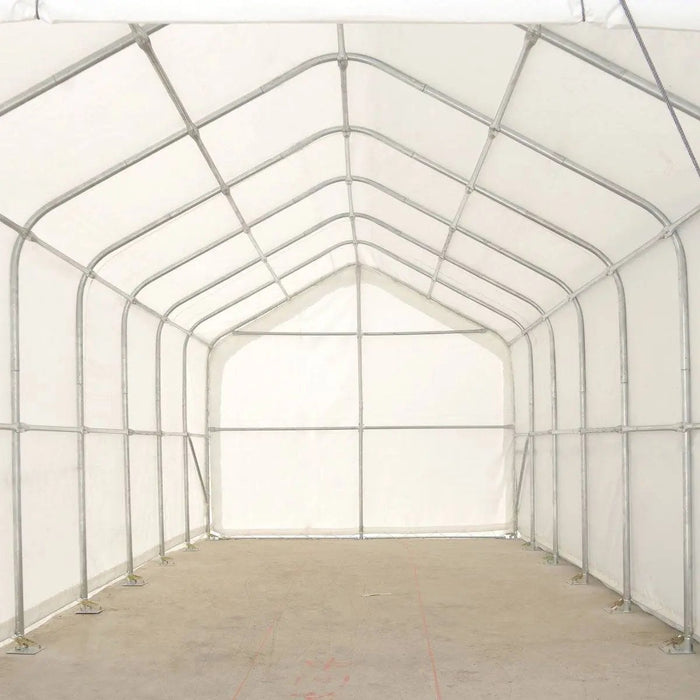

Commercial grade 3-layer galvanized steel frame structure is heavy-duty and built to last with a ratchet strap system that has been integrated to easily secure ground bars to the footplates for a sturdy, reliable footing. Dirt skirts along both sides also help to prevent crosswinds from kicking up under the shelter.

We also carry other RV/Motorhome storage shelters: TMG-ST1525 TMG-ST1830 TMG-ST1845

Additional Info

TMG Industrial is a proud supplier of storage sheds, shelters, garages, and other portable structures around North America. These units are all sold as DIY installations. Due to varying regulations required by individual municipalities, TMG Industrial is not able to provide engineered drawings, or any snow and wind load certifications. It is up to the purchaser to determine any local requirements before purchasing.

Shipping Information icon Shipping Information

Your order will ship from a primary warehouse in Australia. We process and dispatch within 2–3 business days, and most deliveries arrive within 10–15 business days.

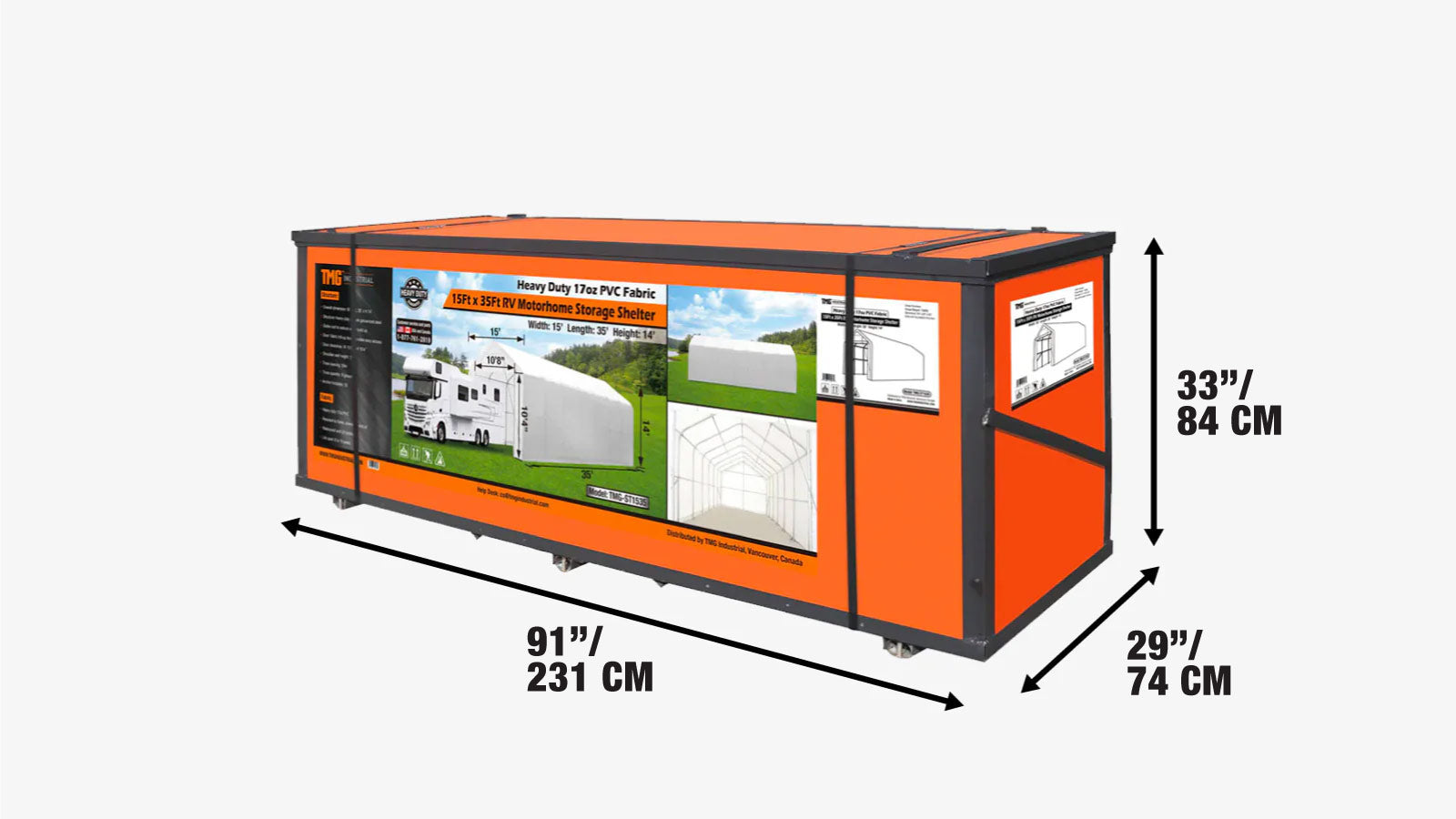

  • Packaging: Packed in a metal crate shipping box
  • Shipping Dimensions: 2.4 m x 0.8 m x 0.9 m
  • Shipping Weight: 709 kg
Shipping from New Zealand
What happens after you place your order?
4.6 x 10.7 m RV/Motorhome Storage Shelter with Heavy-Duty 570 gsm PVC Cover, TMG-ST1535-shipping-info-image

Warranty icon Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Questions & Answers icon Questions & Answers

  • Q: What is the TMG-ST1535 Storage Shelter designed for?
    A: The TMG-ST1535 is designed for the safe, secure, and covered outdoor storage of your RV, motorhome, and other large equipment. It provides a durable outdoor storage solution with ample covered space.
  • Q: What are the overall dimensions of the TMG-ST1535 shelter?
    A: The shelter provides approximately 50 square metres of covered space. It has a peak ceiling height of 4.27 metres (14 feet) and sidewall height of 3.05 metres (10 feet). The required foundation size is approximately 4.9 metres wide by 10.9 metres long.
  • Q: What is the door clearance?
    A: The front roll-up door offers a clearance of approximately 3.4 metres (11 feet) wide by 3.0 metres (10 feet) high.
  • Q: What is the frame made of?
    A: The shelter features a commercial-grade, 3-layer galvanized steel frame structure. The truss spacing is approximately 1.5 metres (60 inches), with 6 truss groups. The truss tubes are Ø58 mm - 15 GA, and purlin tubes are Ø48 mm - 15 GA.
  • Q: What type of fabric is used for the cover?
    A: The cover is made from a heavy-duty, 17 oz (570 gsm), triple-layer ripstop polyvinyl chloride (PVC) tarpaulin. This fabric is:

    - Naturally flame retardant
    - Resistant to chemicals and oil
    - UV protected
    - Waterproof
  • Q: Does the shelter offer protection against wind and dust?
    A: Yes, the TMG-ST1535 includes dirt skirts. These skirts run along the full length of both sides to help prevent crosswinds from kicking dust up under the shelter and to increase overall stability.
  • Q: Is the TMG-ST1535 easy to assemble?
    A: Yes, the shelter is sold as a DIY installation.

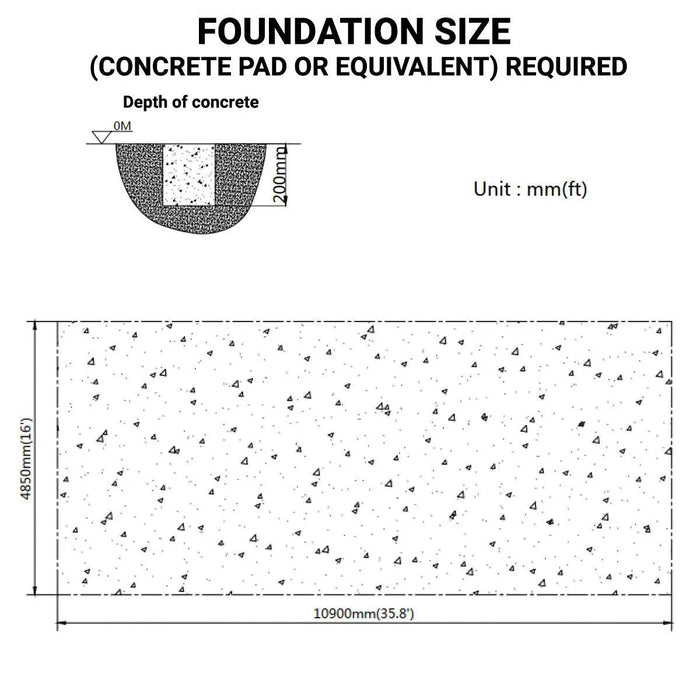

  • Q: What kind of foundation is required?
    A: The shelter is designed to be installed on any concrete slabs or equivalent sturdy foundation.
  • Q: What is the warranty on the TMG-ST1535 Storage Shelter?
    A: The TMG-ST1535 is backed by a 1-year manufacturer warranty.

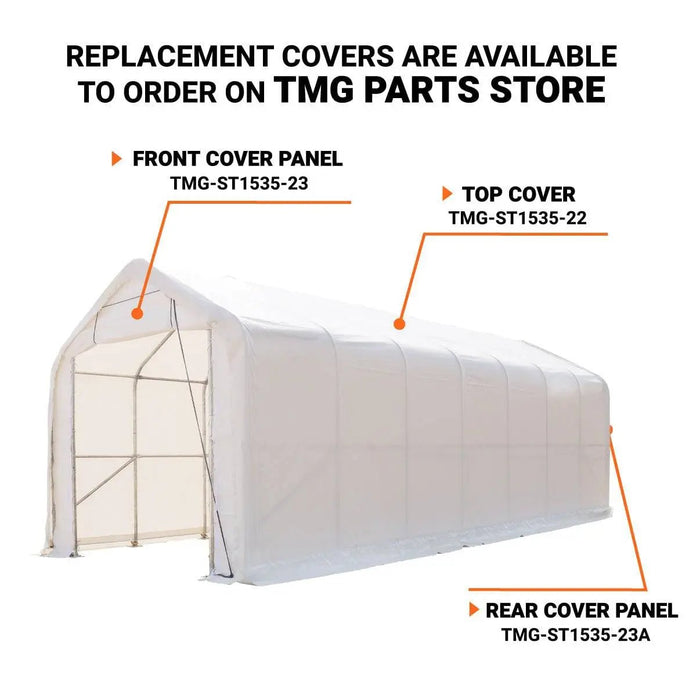

  • Q: Are replacement covers available?
    A: Yes, replacement covers are available for order.
