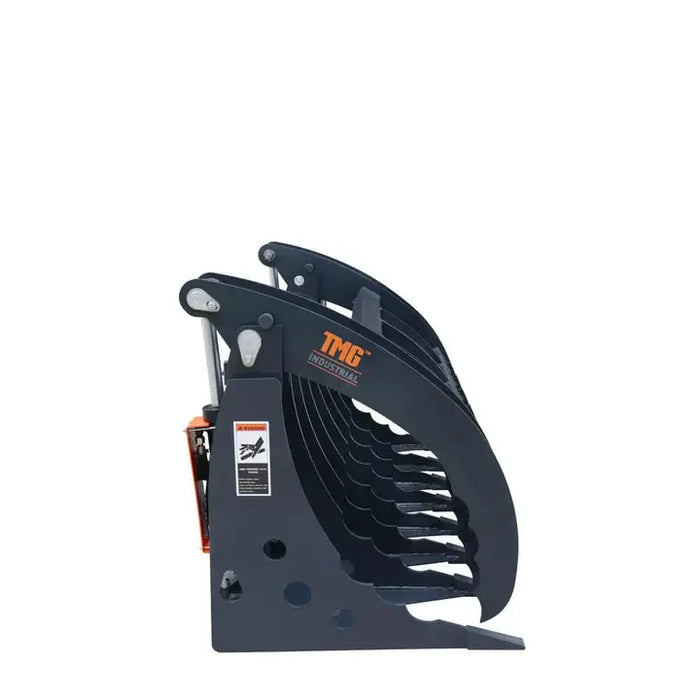

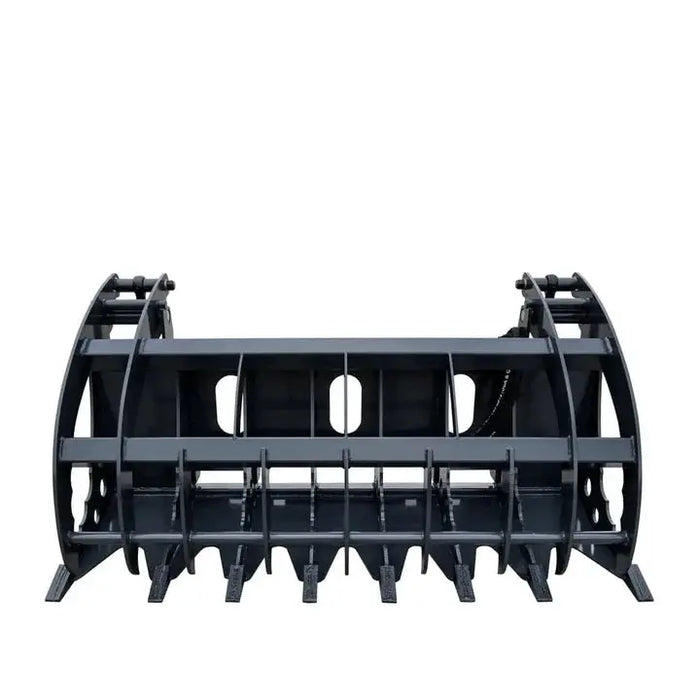

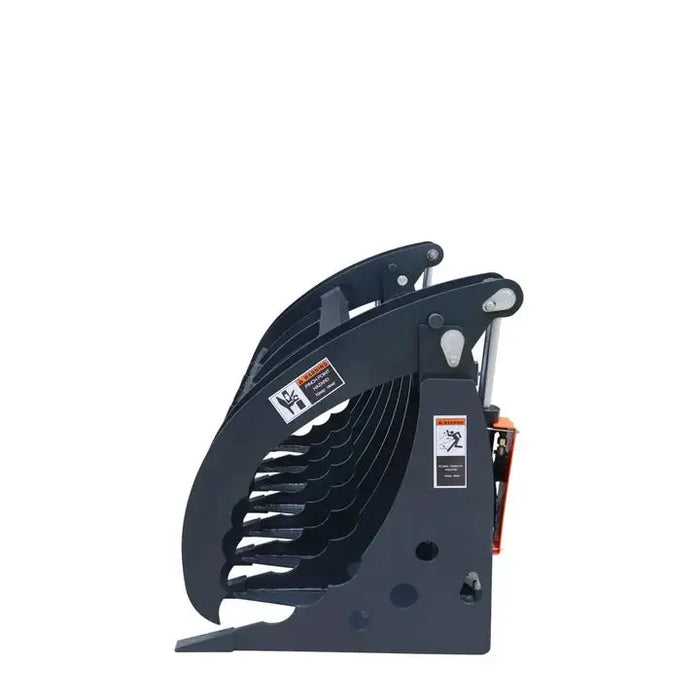

1.83 m Skid Steer Root Rake Clamshell Grapple, Universal Mount, 1.37 m Jaw Opening, 1360 kg Capacity, TMG-SRR75

Product Manual
1.83 m Skid Steer Root Rake Clamshell Grapple, Universal Mount, 1.37 m Jaw Opening, 1360 kg Capacity, TMG-SRR75 TMG Industrial Australia
Incoming Summer 2026
none
$3,999.00 - $3,999.00
$3,999.00
$3,999.00 - $3,999.00
$3,999.00
$3,999.00

Arriving in Summer 2026 Learn More
1-800-870-844

Features

  • Grapple capacity up to 1360 kg (3000 lb) to handle jobs in forestry, recycling, scrap yards, construction, agriculture and more
  • 183 cm (72”) of working width and open end design allows you to work with varying sizes of logs, brush, roots and awkward debris

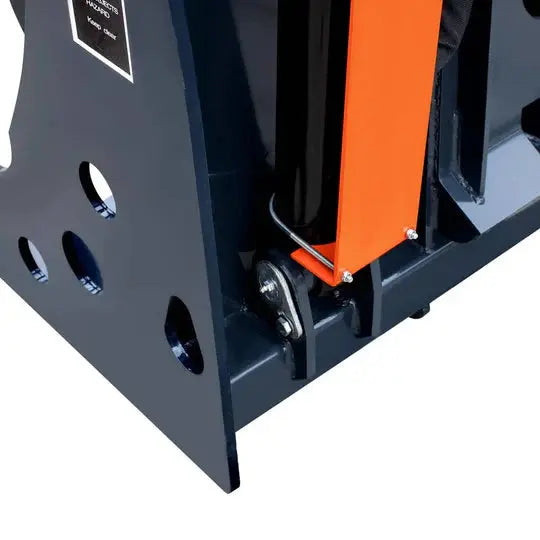

  • Twin hydraulic cylinder grapple arms (with guards) operate under 20,700 kPa (3000 PSI) of pressure for a heavy-duty working capacity
  • Greasable pins with bolt-locked design for simple routine maintenance that ensures this attachment’s long-lasting lifespan and dependability

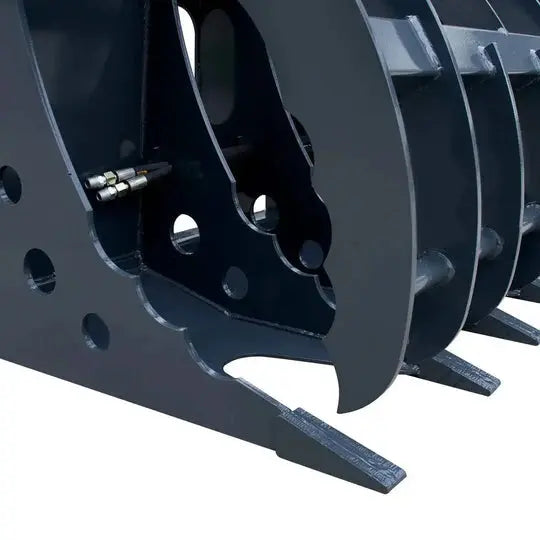

  • Reinforced weld-on curved teeth slide effortlessly across the ground, picking up debris while leaving the surface undisturbed

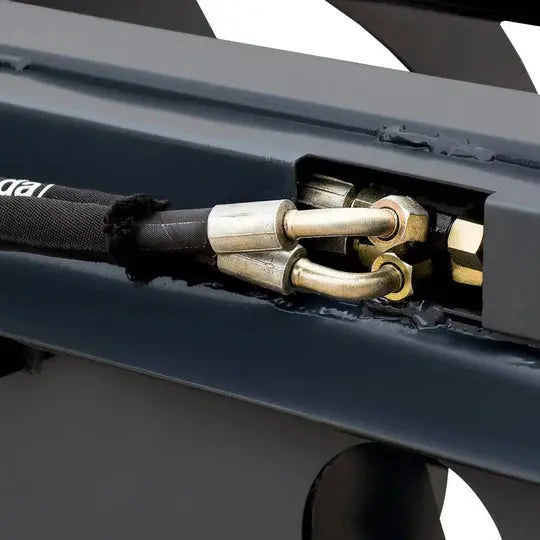

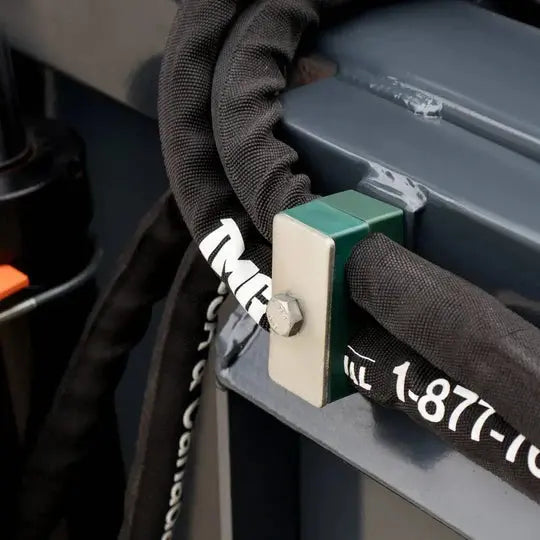

  • Included hydraulic hoses for simple hookup and efficient energy transfer between the grappler and skid steer
  • Universal mount that will fit most skid steers, turning it into a multi-use, versatile jobsite asset that is strong and reliable

Specifications icon Specifications

  • Compatible with 40-70 HP skid steers
  • Operating weight: 442 kg (975 lb)
  • Overall dimension: 183 cm (L) x 86 cm (W) x 97 cm (H) (72” x 34” x 38”)
  • Working width: 183 cm (72”)
  • Grapple capacity: 1360 kg (3000 lb)
  • Number of teeth: 8
  • Teeth material: Mn400 steel
  • Teeth width: 44 mm (1-¾”)
  • Tine spacing: 229 mm (9”)
  • Grapple arm & tine thickness: 19 mm (¾”)
  • Min. jaw opening: 305 mm (12”)
  • Max. jaw opening: 137 cm (54”)
  • Hydraulic pressure: 20,700 kPa (3000 PSI)
  • Flow rate: 45–91 L/min (12–24 GPM)
  • Cross beams: 76 mm x 76 mm (3” x 3”), 4 GA

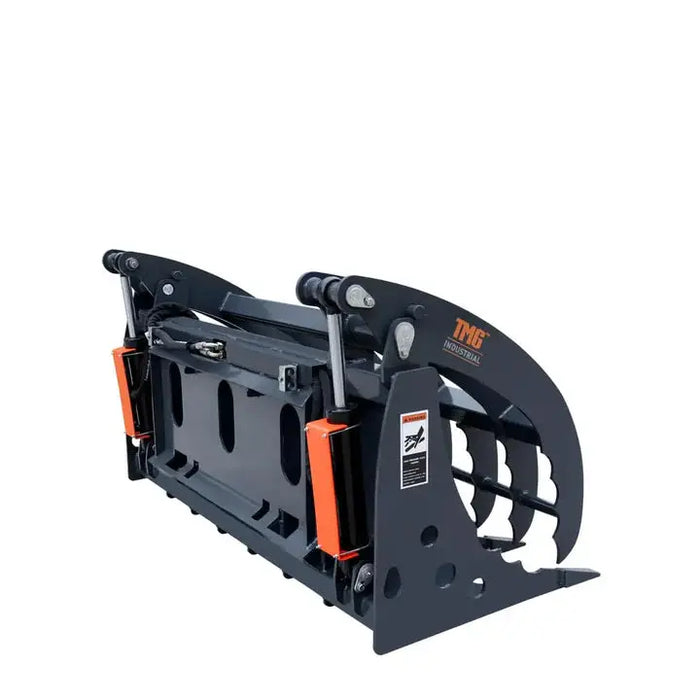

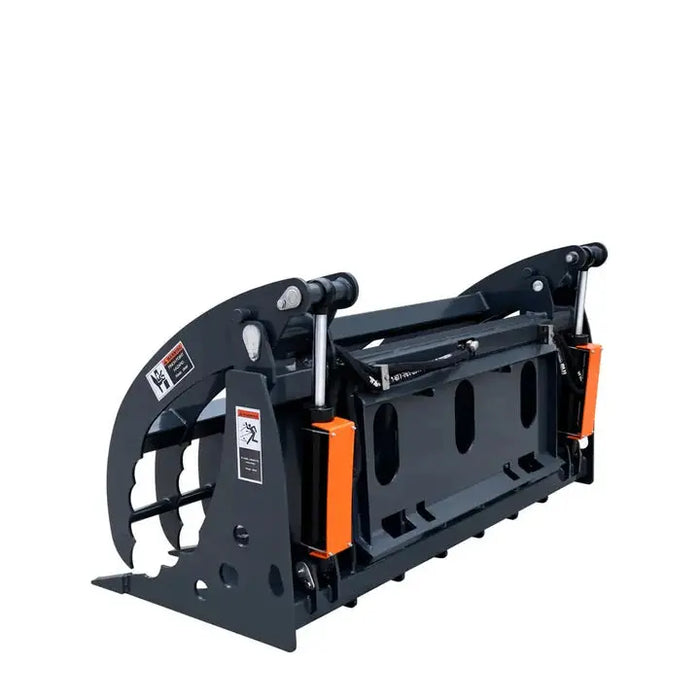

  • Twin hydraulic cylinder grapple arms with protective guards

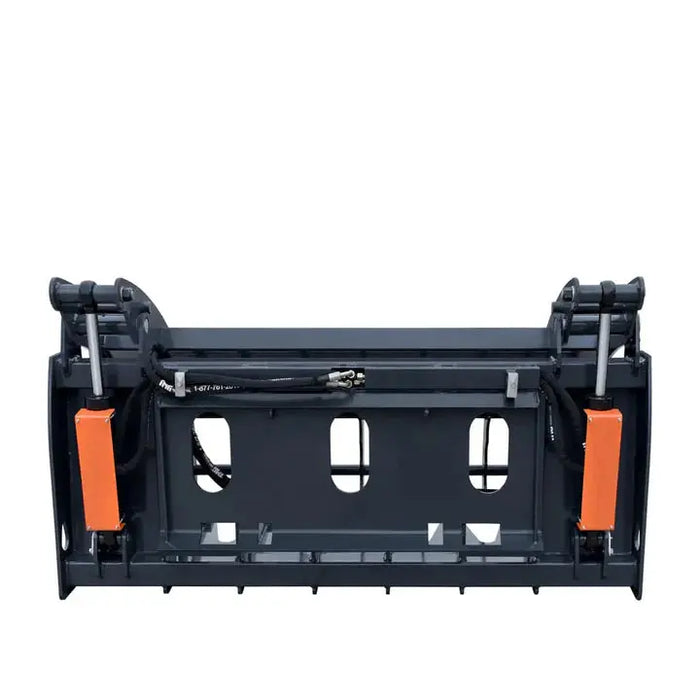

  • Universal skid steer mount
  • Hydraulic quick couplers are not included, available for separate shopping

Product Description icon Product Description

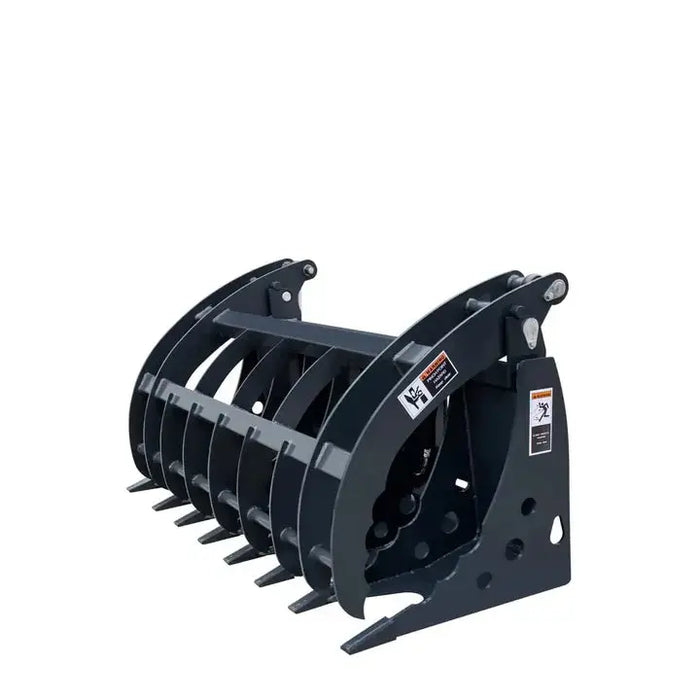

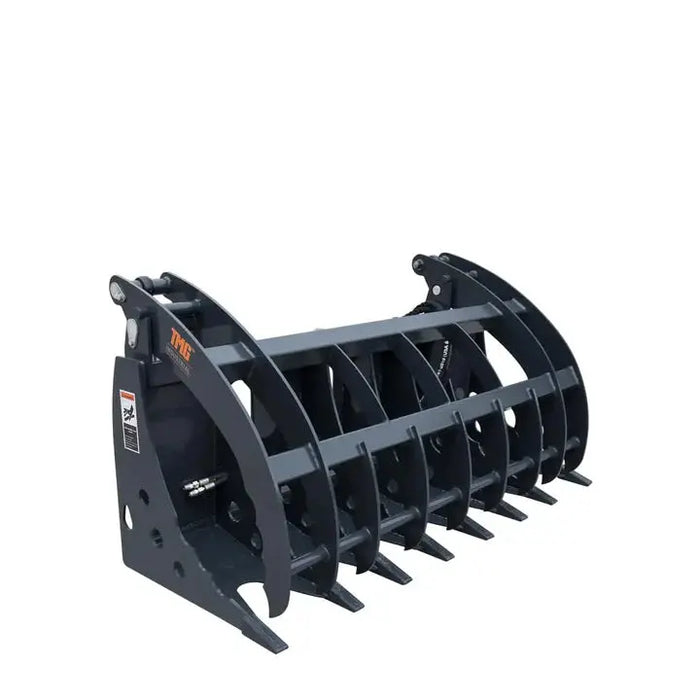

The TMG-SRR75 Skid Steer Root Rake Clamshell Grapple Attachment features twin hydraulic cylinder arms that can produce a grappling capacity of up to 1360 kg (3000 lb). A versatile attachment for your skid steer that can be used for a variety of applications including brush/log pick up, recycling, root raking, scrap yard sorting and any sort of moving chore around your acreage, farm or job site.

Equipped with a universal mount for easy hookup to your skid steer and quick, efficient workflow. The reinforced weld-on curved teeth slide effortlessly over the ground leaving the surface undisturbed, and 76 mm x 76 mm (3" x 3") primary cross beams create an overall heavy-duty construction that will work through the toughest projects and ensure you get the job done.

183 cm (72") of working width offers diverse grappling capabilities on your farm, commercial property or worksite. The 137 cm (54") maximum jaw opening can clamp closed to a tight 305 mm (12") so you’ll have a solid grip on any kind of heavy load. Built to last with greasable pivot pins that have a bolt-locked design for easy routine maintenance and comes with included hydraulic hoses.

We also carry a similar model of this root rake grapple attachment: TMG-RG72 Parts and accessories of this product are compatible with Stanforge SF-SRR75.

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Australia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 196 cm x 99 cm x 97 cm (77” x 39” x 38”) (L x W x H)
  • Shipping weight: 528 kg (1,165 lb)
Shipping from New Zealand
What happens after you place your order?

Warranty icon Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
